Eraser PQ™

The Eraser PQ (Pit and Quarry) system is an economical cleaner designed for performance and reliability. With a simple and effective spring tensioning unit, it uses our 6” (152 mm) tall polyurethane blade and requires little to no maintenance.

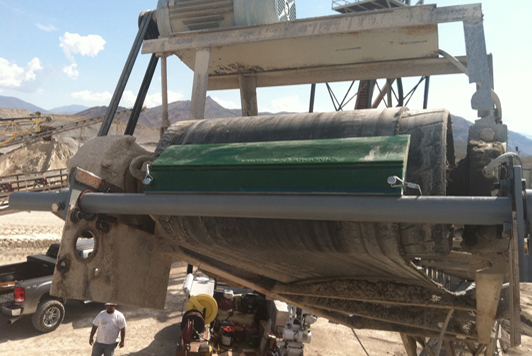

  • Eraser PQ system in the field

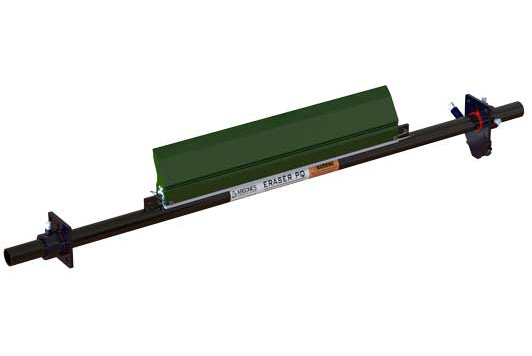

  • Eraser PQ system
Benefits
  • Ideally suited for pit and quarry applications
  • Economical yet designed for performance and reliability
  • Effective cleaning performance with a 6” (152 mm) tall polyurethane blade
  • Easy to install and tension and requires little to no maintenance.
  • Offers a simple and effective spring tensioning unit – keeping consistent pressure against the conveyor belt
  • Single pin blade attachment means quick and simple blade change out with less downtime
Specifications

Recommended Belt Speeds

  • 0 – 450 fpm (2.29 m/s)

Pulley Diameter (PD)

  • Minimum: 8” (203 mm)
  • Maximum: 20” (508 mm)
Blade Durometer Options

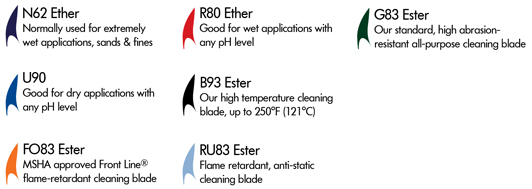

Eraser PQ blade durometer options

Sizing Information

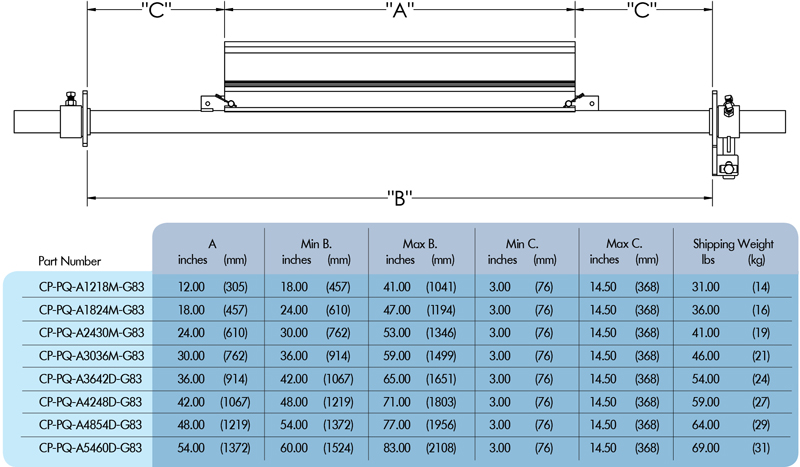

Eraser PQ sizing chart

Mounting Information

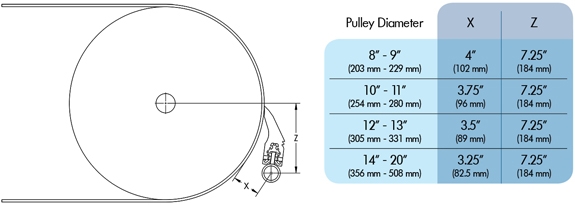

Eraser PQ mounting information

Part Numbering

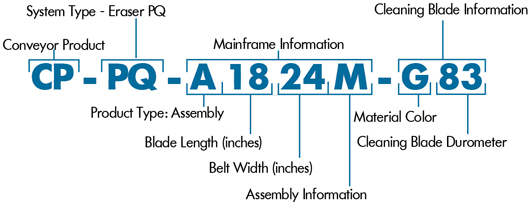

Eraser PQ nomenclature
