Bulk Material Handling | Mining | Construction

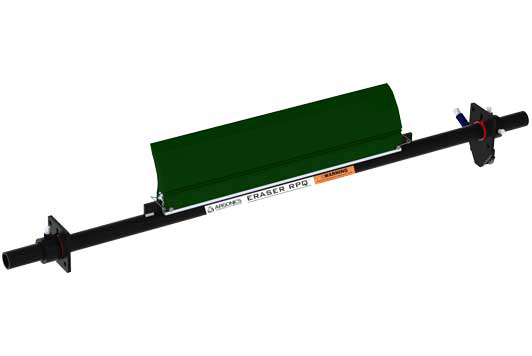

Eraser RPQ™

The Eraser RPQ (Pit and Quarry) system is an economical cleaner designed for performance and reliability. With a simple and effective spring tensioning unit, it uses our 7” (178 mm) tall Raptor blade and requires little to no maintenance.

  • Eraser RPQ system
Benefits
  • Ideally suited for pit and quarry applications
  • Economical yet designed for performance and reliability
  • Effective cleaning performance with a 7” (178 mm) tall polyurethane blade
  • Easy to install and tension and requires little to no maintenance.
  • Offers a simple and effective spring tensioning unit – keeping consistent pressure against the conveyor belt
  • Single pin blade attachment means quick and simple blade change out with less downtime
Specifications

Recommended Belt Speeds

  • 0 – 500 fpm (2.54 m/s)

Pulley Diameter (PD)

  • Minimum: 8” (203 mm)
  • Maximum: 24” (610 mm)

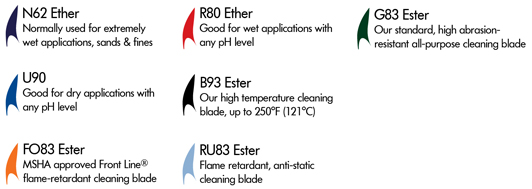

Blade Durometer Options

Eraser RPQ blade durometers available

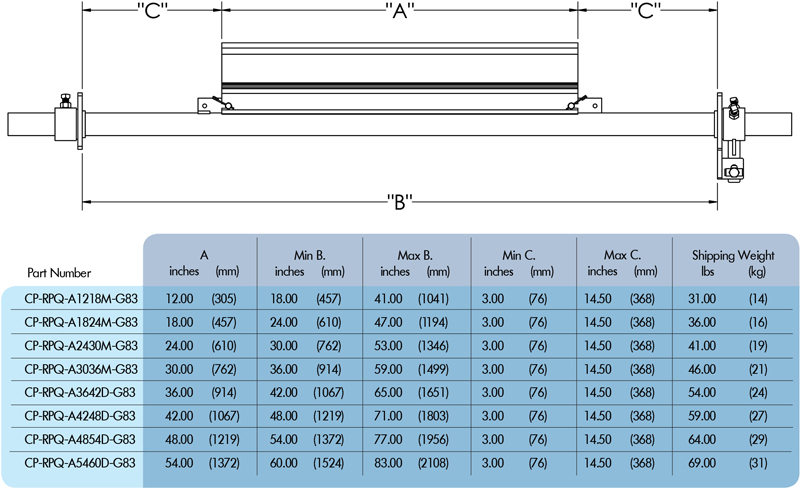

Sizing Information

Eraser RPQ sizing chart

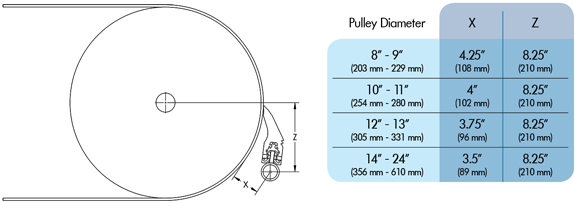

Mounting Information

Eraser RPQ mounting info

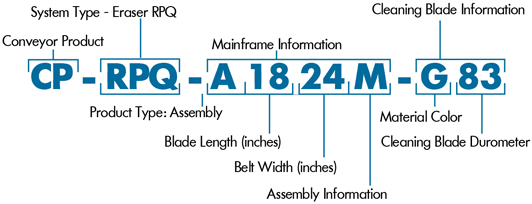

Part Numbering

Eraser RPQ nomenclature
