Eraser™

The Eraser is our standard industrial workhorse. It’s designed to handle most conveyor cleaning with a .25″ (6 mm) thick, 3″ x 3″ (76 mm x 76 mm) powder-coated tube stock steel mainframe and corrosion-resistant, galvanized Schedule 80 pipe stub ends for superior strength and durability.

Benefits
  • Proven effective cleaning performance with a 7.25” (184 mm) tall polyurethane blade
  • The industry’s most rugged mainframe and blade design on a standard size system
  • Compact mounting footprint only protrudes 5” (127 mm) from mounting structure
  • No rusted springs, hoses, cables, shocks or mud-packed components to deal with
  • The Perma-Torque™ tensioner provides uniform cleaning pressure and superior cleaning performance
  • Brightly colored safety yellow end caps seal the Safe Torque™ ratchet from dust and water contamination
  • Single pin blade attachment means quick and simple blade change out with less downtime
Specifications

Recommended Belt Speeds

  • 0 – 600 fpm (3.05 m/s)

Pulley Diameter (PD)

  • Minimum: 16” (406 mm)
  • Maximum: 32” (813 mm)

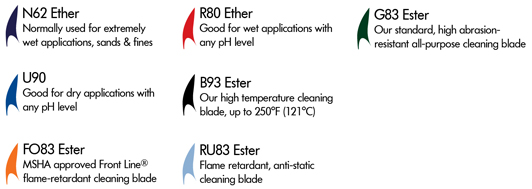

Blade Durometer Options

Eraser blade durometers

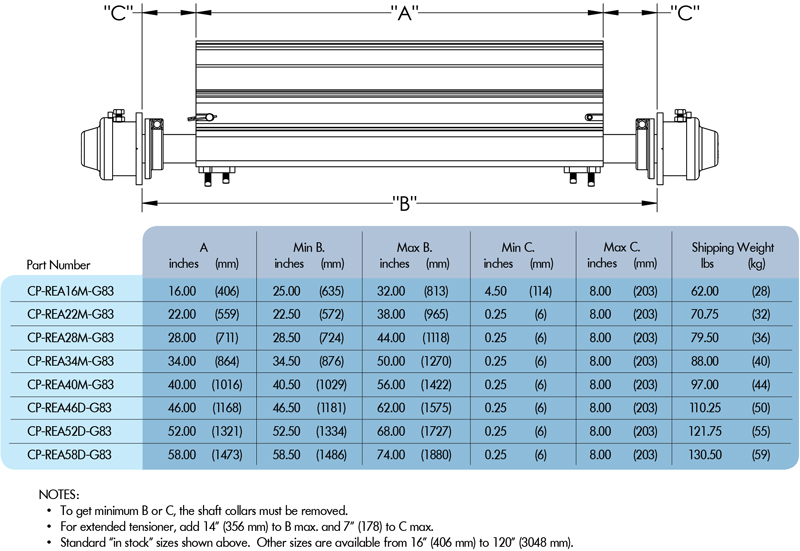

Sizing Information

Eraser sizing chart

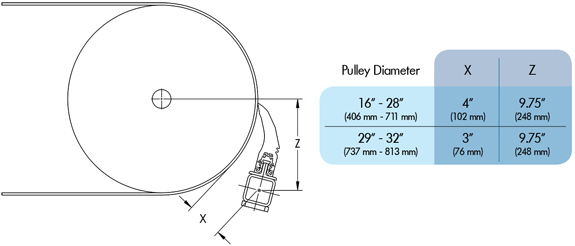

Mounting Information

Eraser mounting info

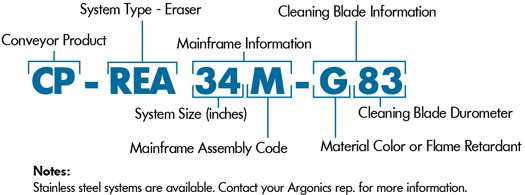

Part Numbering

Eraser nomenclature
