Super-G™

The Super-G’s unique “pass-through” mainframe design allows material to freely fall through it, keeping your systems online with little to no maintenance. This system is based on the same heavy duty mainframe and Perma-Torque tensioner as our Eraser system. Choose either a solid urethane or urethane/tungsten carbide blade. The Super-G is designed with a .25” (6 mm) thick, 3” x 3” (76 mm x 76 mm) tube stock steel mainframe with a “pass-through” blade arm and corrosion-resistant, galvanized Schedule 80 pipe stub ends.

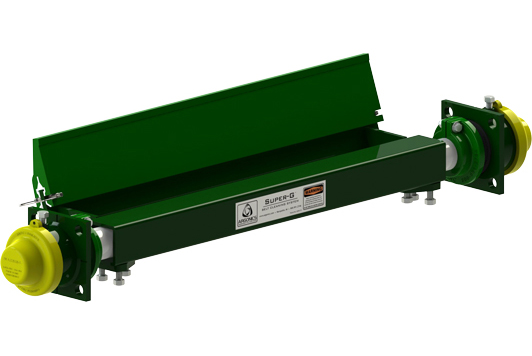

  • Super-G system
Benefits
  • Effective performance for wet, sticky secondary cleaning applications
  • Tungsten carbide edged cleaning blades available
  • The Perma-Torque™ internal central tensioner is adjustable from 20 to 80 ft-lb (27 to 108 Nm) resulting in uniform cleaning pressure to the conveyor belt
  • Compact mounting footprint only protrudes 5” (127 mm) from mounting structure
  • Brightly colored safety yellow end caps seal the Safe Torque™ ratchet from dust and water contamination
  • Single pin blade attachment means quick and simple blade change out, less downtime and no rusty bolts
Specifications

Recommended Belt Speeds

  • Urethane blade: 0 – 500 fpm (2.54 m/s)
  • Tungsten blade: 0 – 1000 fpm (5.08 m/s)

Mounting Distance

  • Vertical: 7.5” ± .25 (190 mm ± 6)
  • Horizontal: up to 16” (406 mm)
Blade Durometer Options

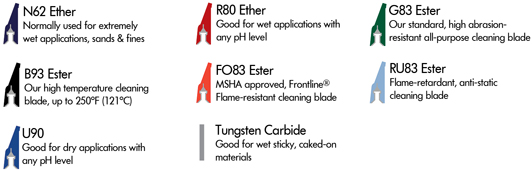

Super-G blade durometer options

Sizing Information

Super-G sizing chart

Mounting Information

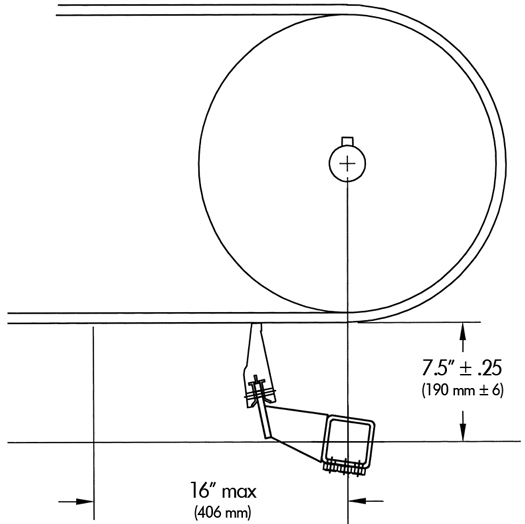

Super-G mounting info

Part Numbering

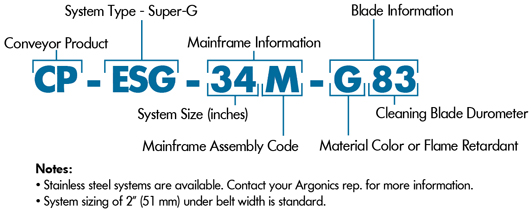

Super-G nomenclature
