Tungsten XTC™

The XTC with a tungsten carbide blade is one powerful reversing conveyor cleaner. The system can handle wet, dry, sticky or slimy conditions. The unique Web Torque™ tensioner has enough give for mechanical splices and the flow-over blade design reduces material build-up. The XTC is designed with the same toughness and durability as our standard Eraser, with a .25” (6 mm) thick, 3” x 3” (76 mm x 76 mm) tube stock steel mainframe and heavy duty stub ends.

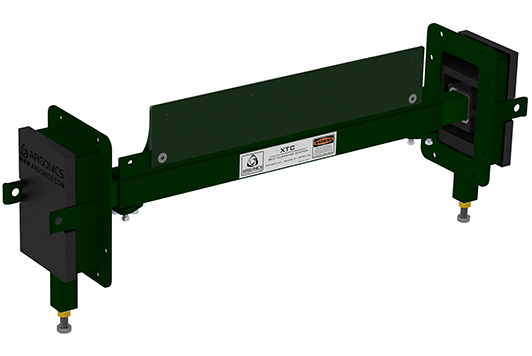

  • XTC tungsten
Benefits
  • Tungsten carbide blade is ideal for high-speed belts
  • Specifically designed for reversing conveyor belt applications
  • The Web Torque™ shock absorbs the high level of impact and contortion which are present in most reversing applications
  • No rusty springs, hoses, cables, shocks or mud-packed components to deal with
Specifications

Recommended Belt Speeds

  • Tungsten blade: 0 – 1000 fpm (5.08 m/s)

Mounting Distance

  • Vertical: 14.62” ± .25 (371 mm ± 6)
  • Horizontal: up to 16” (406 mm)
Blade Durometer Options

XTC tungsten blade durometer

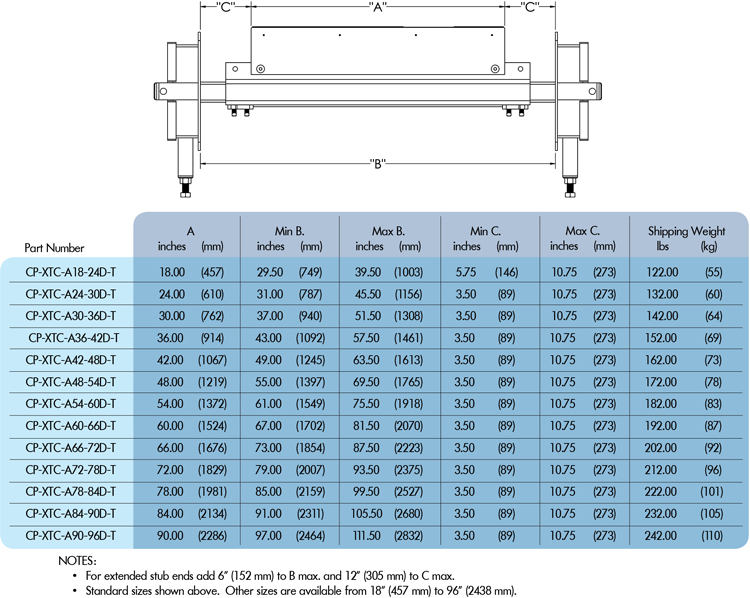

Sizing Information

XTC tungsten sizing chart

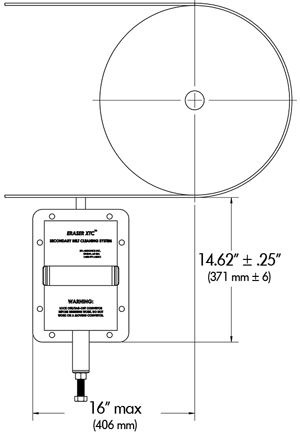

Mounting Information

XTC mounting info

Part Numbering

Contact Argonics for part number information.
