Bulk Material Handling | Mining | Construction

XTC™

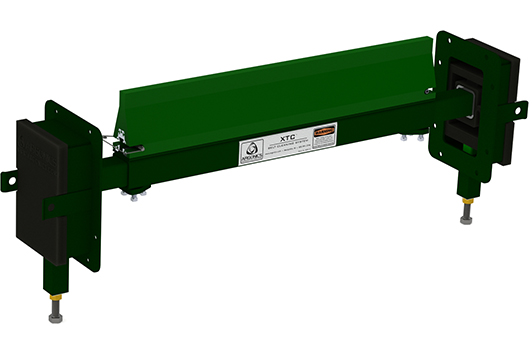

The XTC is one powerful reversing conveyor cleaner. The system can handle wet, dry, sticky or slimy conditions. The unique Web Torque™ tensioner has enough give for mechanical splices and the flow-over blade design reduces material build-up. The XTC is designed with the same toughness and durability as our standard Eraser, with a .25” (6 mm) thick, 3” x 3” (76 mm x 76 mm) tube stock steel mainframe and heavy duty stub ends.

  • XTC system
Benefits
  • Specifically designed for reversing conveyor belt applications
  • The Web Torque™ shock absorbs the high level of impact and contortion which are present in most reversing applications
  • No rusty springs, hoses, cables, shocks or mud-packed components to deal with
  • Single pin blade attachment means quick blade change out, less downtime and no rusty bolts
Specifications

Recommended Belt Speeds

  • Urethane blade: 0 – 500 fpm (2.54 m/s)

Mounting Distance

  • Vertical: 14.62” ± .25 (371 mm ± 6)
  • Horizontal: up to 16” (406 mm)
Blade Durometer Options

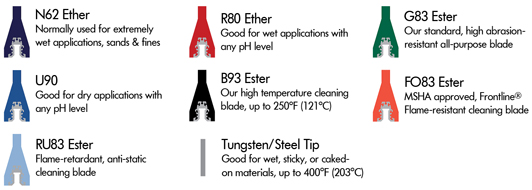

XTC blade durometers

Sizing Information

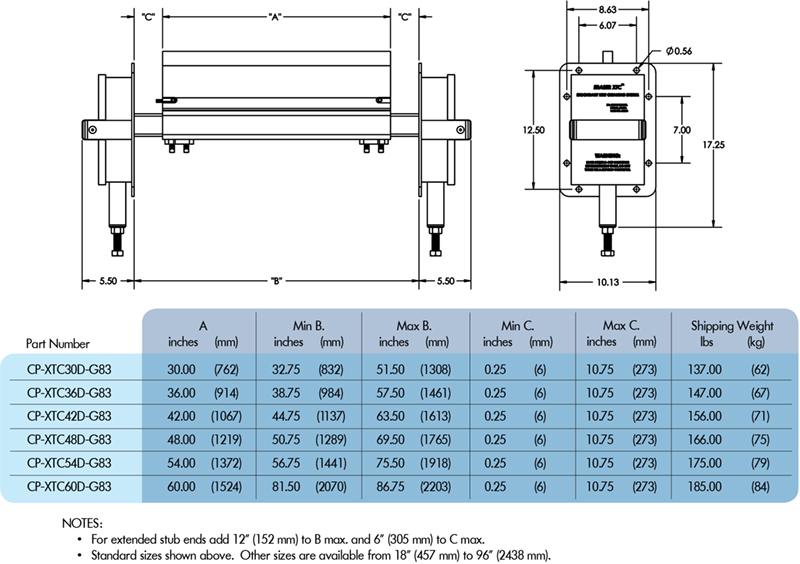

XTC sizing chart

Mounting Information

XTC mounting info

Part Numbering

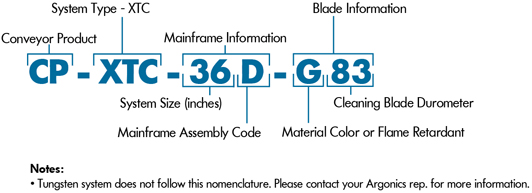

XTC nomenclature
