Product description

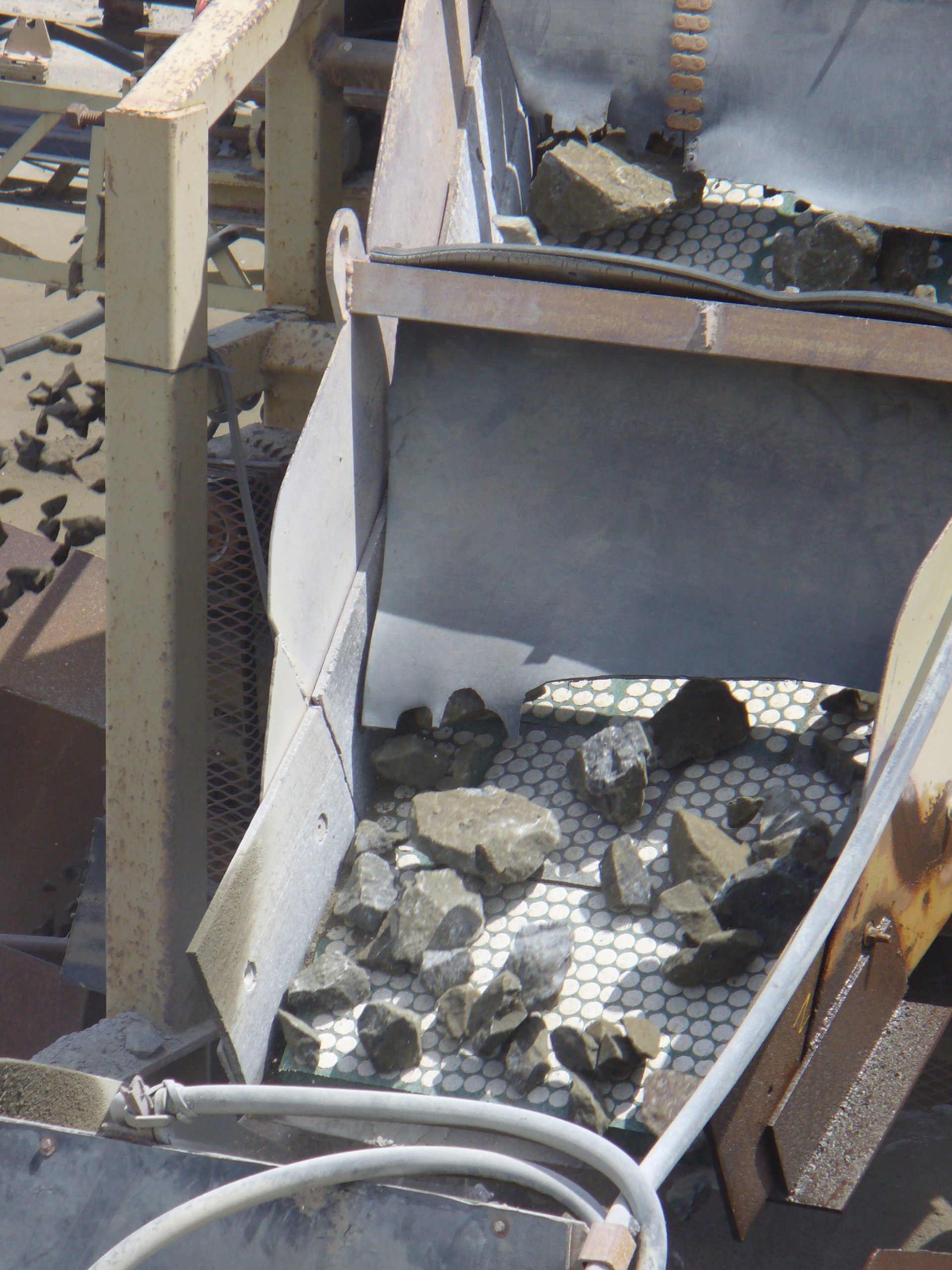

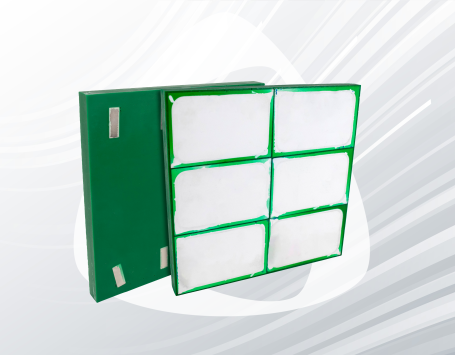

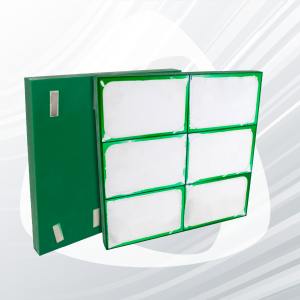

Kryptile is the solution for aggressive applications. Kryptile ceramic liners combine the wear resistance of high alumina oxide ceramic with the impact resistance of Kryptane® polyurethane. Kryptile liners are all custom designed to the shape of your chute, bin or hopper, eliminating the need to cut or fit the liners in the field and ensuring a perfect fit every time.
- Kryptile KT is the original ceramic hextile liner. The hextile formation is closely gapped to provide superior sliding abrasion resistance in high fines applications, wet or dry. Kryptile KT is generally not recommended for applications where there is impact; it is for slide abrasion only.
- Kryptile KC works well in virtually all applications. Kryptile KC is available in liners at least 11 ∕4” (32 mm) thick. Kryptile KC is generally recommended for applications with 6” (152mm) minus rock dropping a maximum of 4 feet (1.22 meters).
- Kryptile KS is specifically designed for aggressive applications with high impact and large rock. Kryptile KS is generally recommended for applications with 10” (254mm) minus rock dropping from a maximum of 6 feet (1.83 meters).
- Kryptile KH is our ceramic cube liner. Kryptile KH is available in liners at least 2” (51 mm) thick. Kryptile KH is generally recommended for applications with 15” (381mm) minus rock dropping from a maximum of 8-10+ feet (2.44 – 3.05+ meters).
