Load Zone Containment Liners

Product description

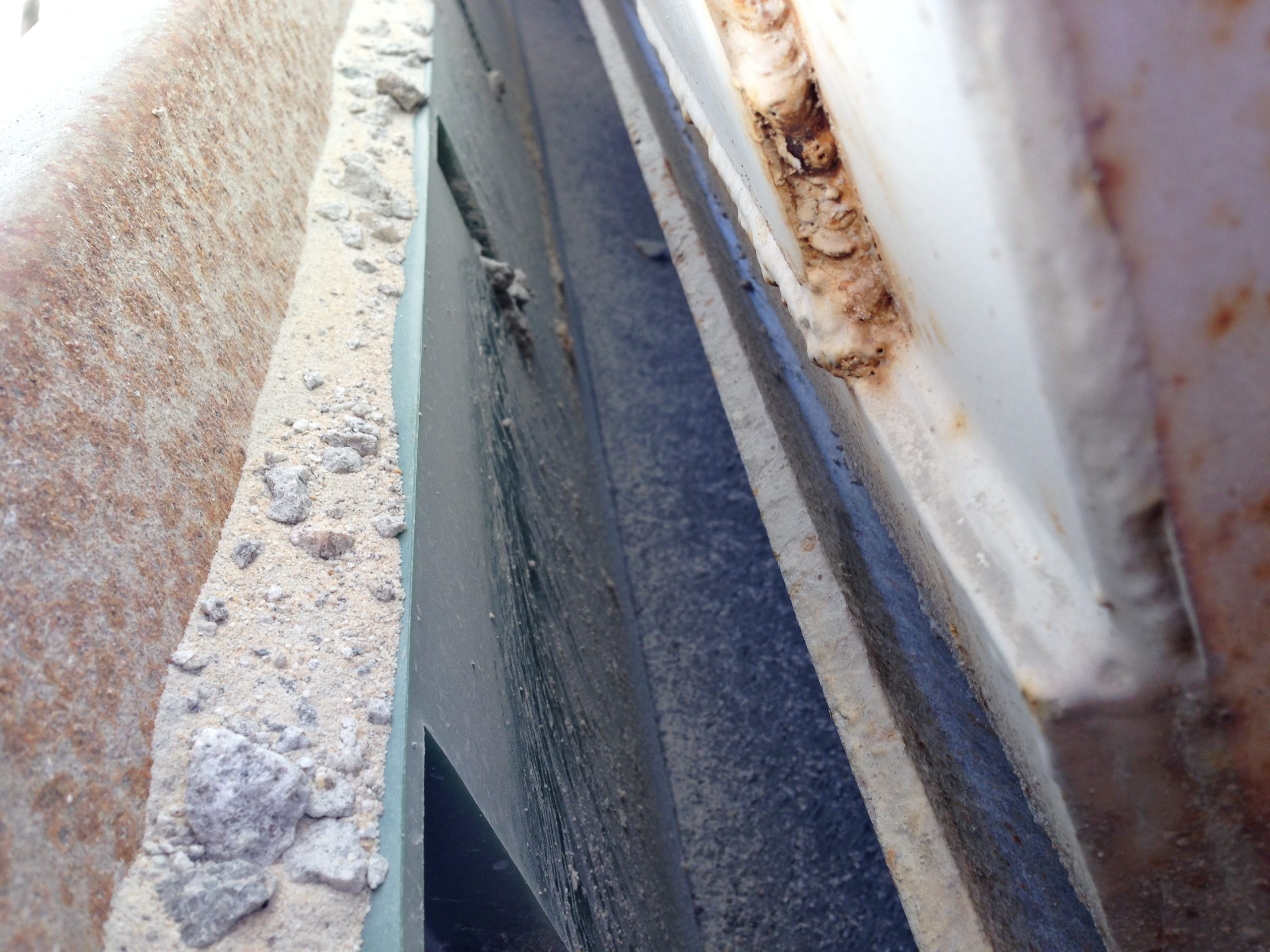

Designed to do one thing and to do it well: contain material at the transfer points on your belt line. Extra-rugged reinforced design with 3/16″ steel insert. Available in either polyurethane only or with ceramics.

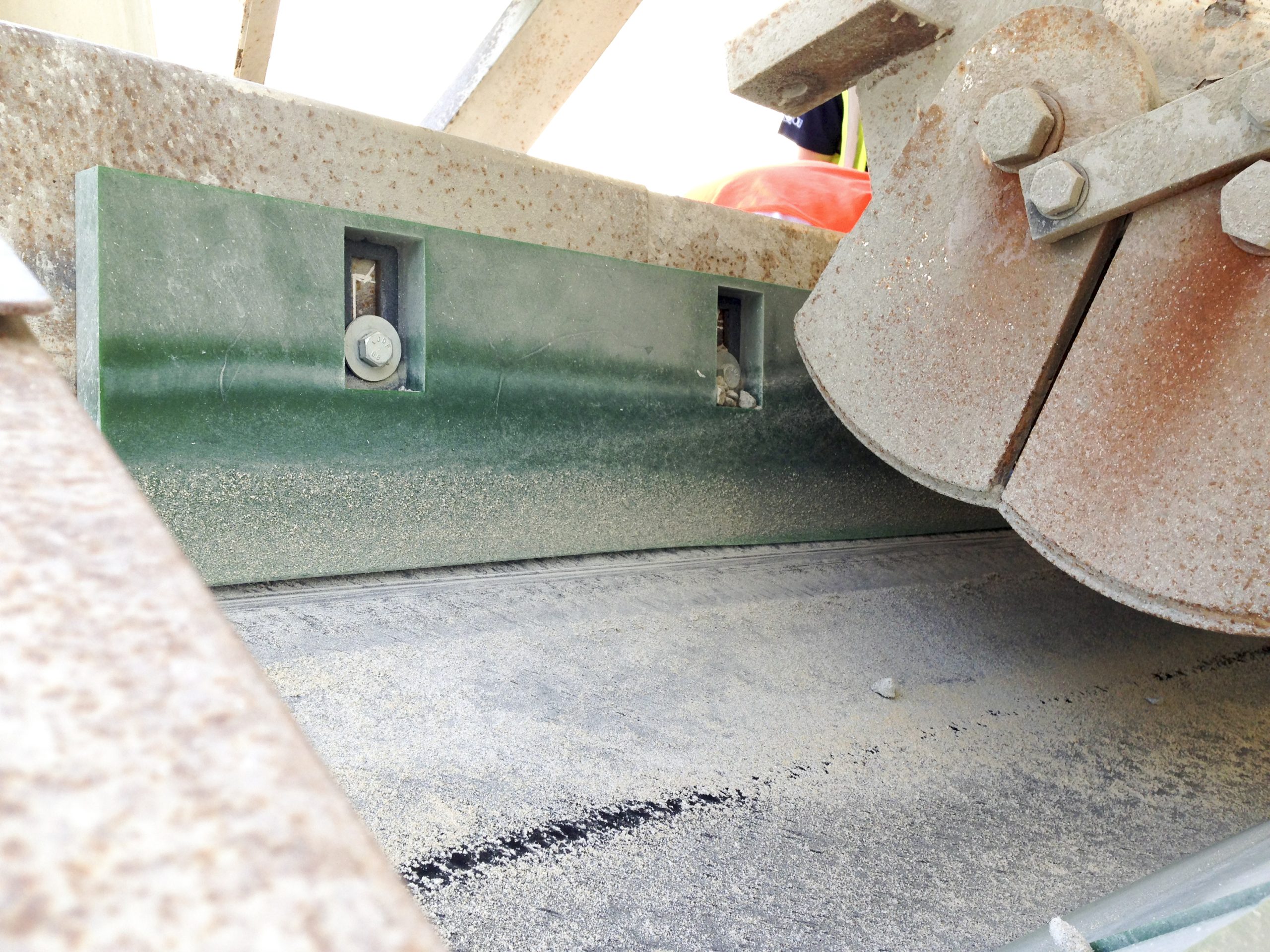

All containment liners come with polyurethane Snap-Tite™ plugs that cover the mounting slots in the liner and prevent material build-up.

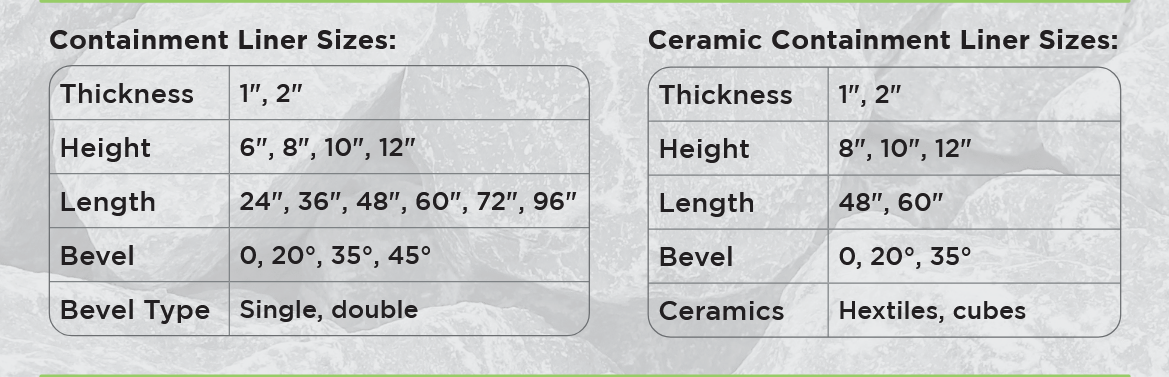

Polyurethane containment liners are available with either a straight or 20° beveled edge, in 60″ and 96″ lengths. Varying heights and thicknesses available.

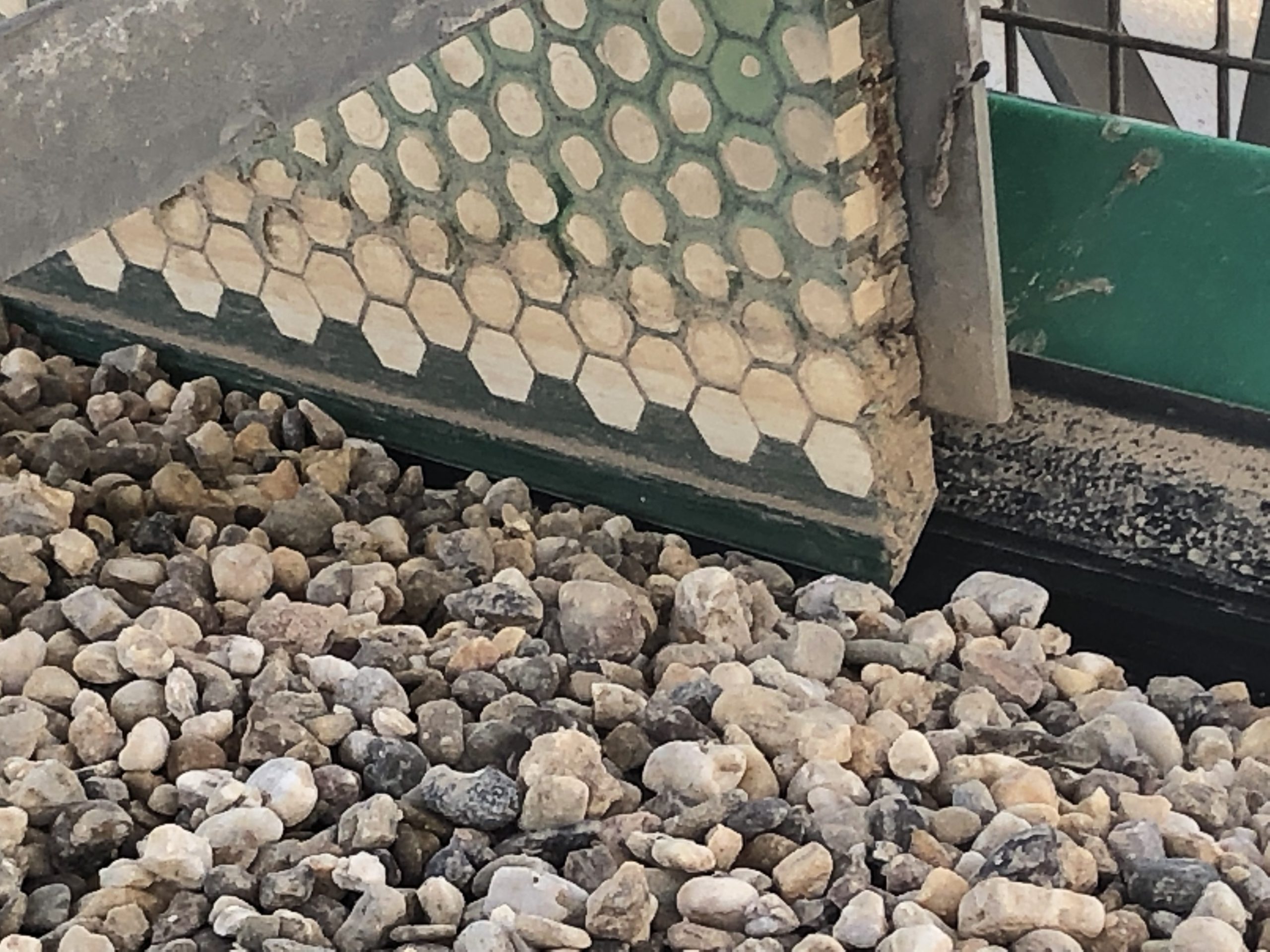

Ceramic-embedded liners are available with flat, 20° or 35° beveled edges, in lengths of 48″ or 60″. The 1″ thick liner uses hextiles and the 2″ thick uses cubes.

• Excellent for containing material at the transfer points on your belt line
• Extra-rugged, reinforced design with 1∕4" steel
• Extremely effective in reducing spillage
• Available with flat edge or 20-degree beveled edge
• Plain liners come in 60" and 96" lengths; varying heights and thicknesses available
• 1" thick ceramic liners contain ceramic hextiles, while the 2" contains ceramic cubes
• Ceramic liners available with flat, 20° or 35° beveled edge, in lengths of 48 inches or 60 inches

Containment liners come with Snap-Tite polyurethane plugs that cover the mounting slots and prevent material build-up
