Eraser PQ™

Product description

Clean Efficiently. Maintain Effortlessly.

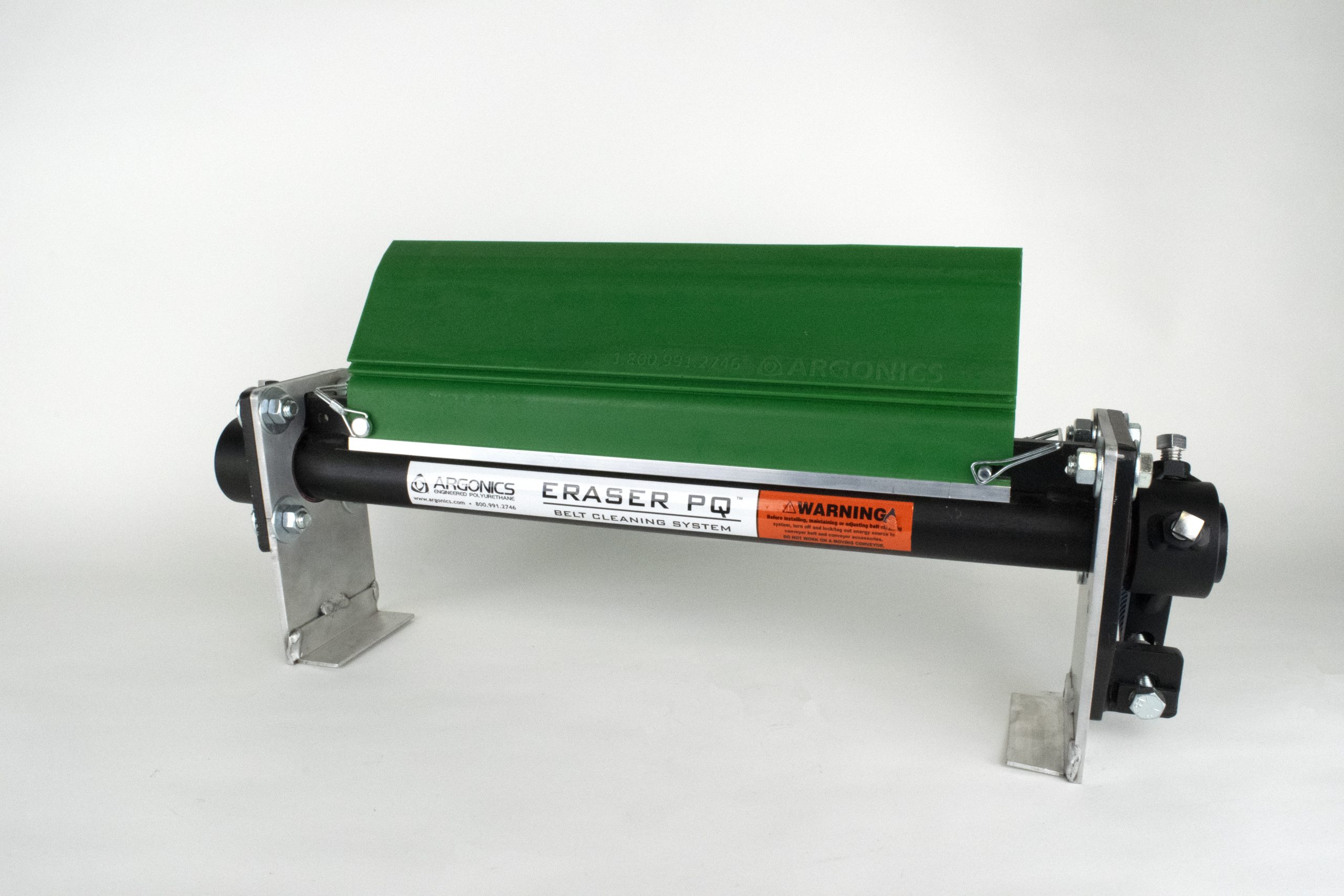

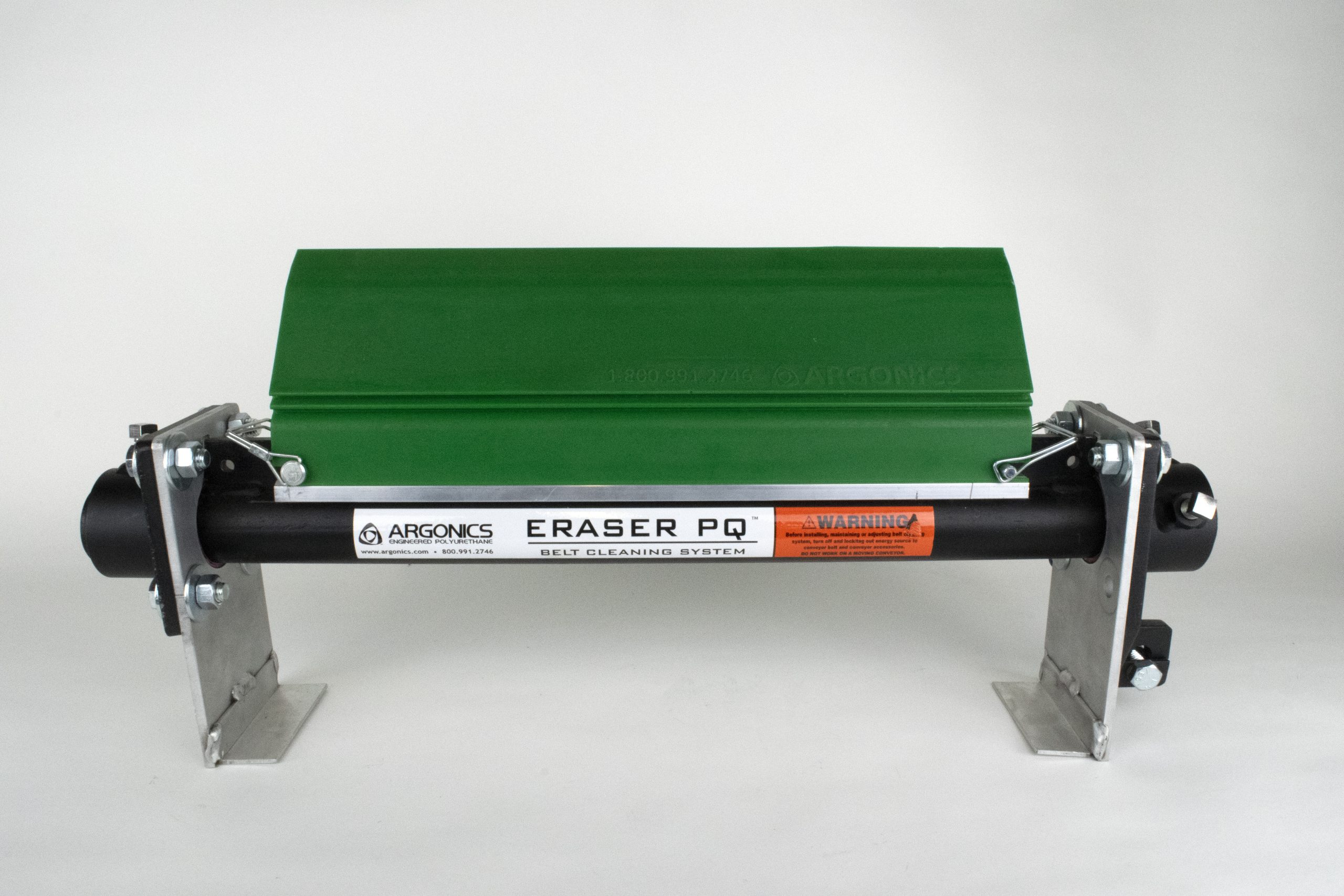

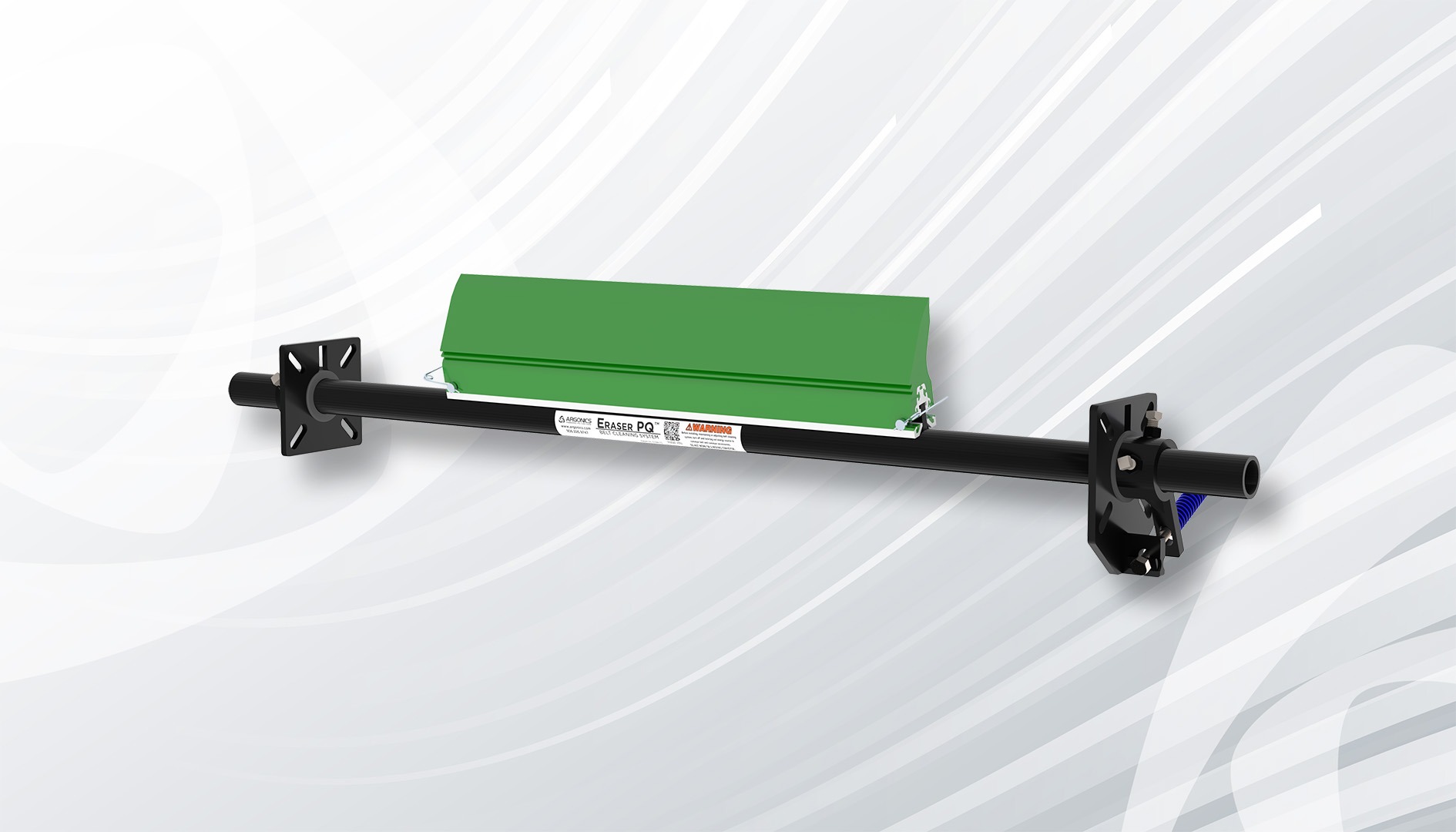

Meet the Eraser PQ™ (Pit & Quarry) — an economical cleaner designed for performance and reliability. With a simple and effective spring tensioning unit, it uses our 6″ tall blade and requires little to no maintenance.


Why the Eraser PQ™ is a smart choice for your operation

  • Ideally suited for pit and quarry applications
  • Economical yet designed for performance and reliability

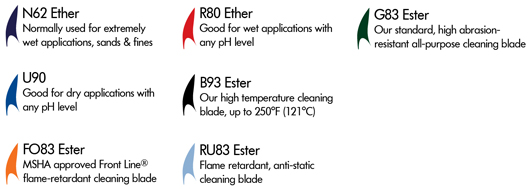

  • Effective cleaning performance with a 6″ (152 mm) tall polyurethane blade
  • Easy to install and tension and requires little to no maintenance

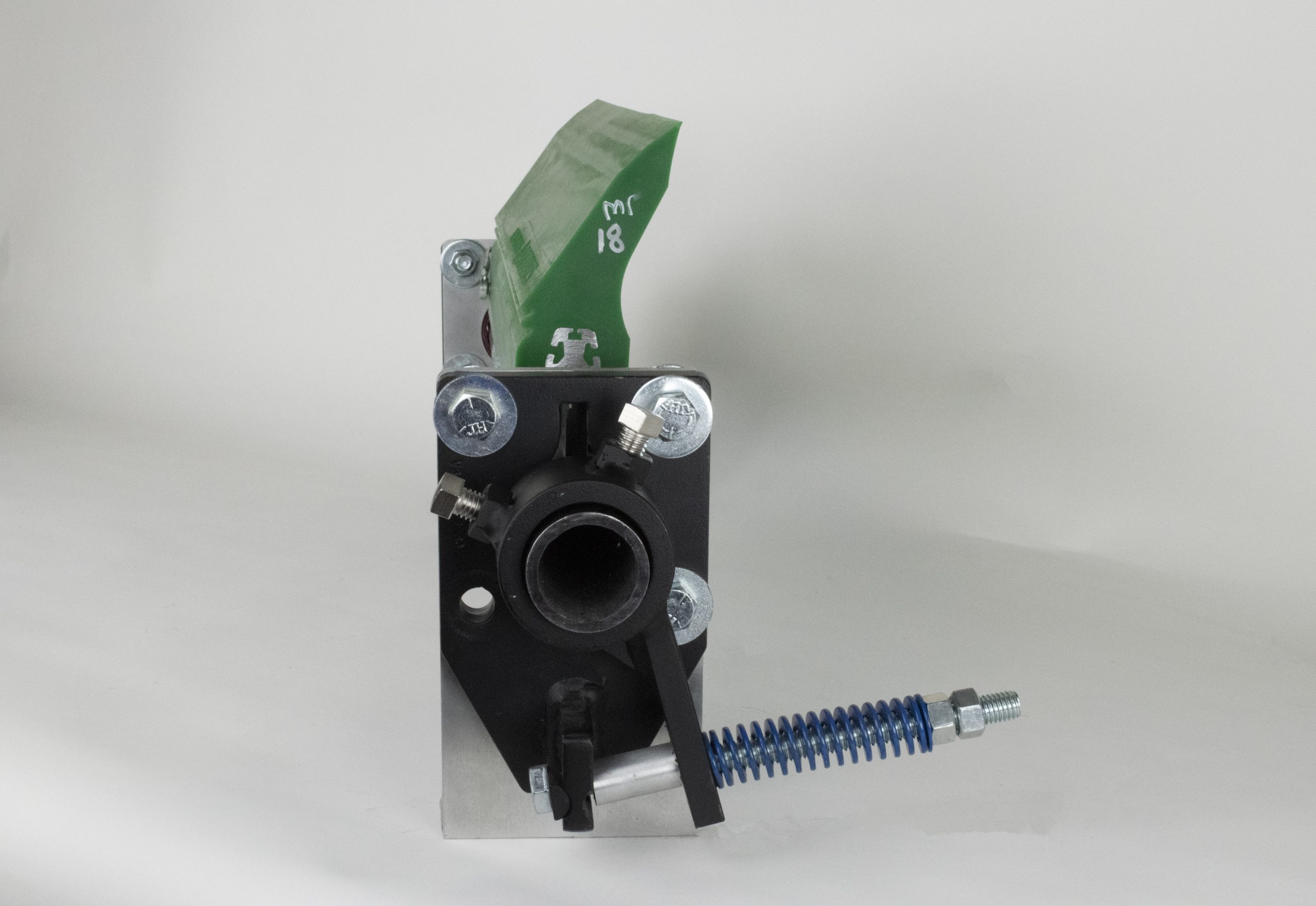

  • Offers a simple and effective spring tensioning unit – keeping consistent pressure against the conveyor belt
  • Retrofits conveyors that use other OEM systems with slotted bolt holes on mounting brackets



Additional information

Max belt speed (FPM): 450

Min pulley diameter (in.): 8

Max pulley diameter (in.): 20

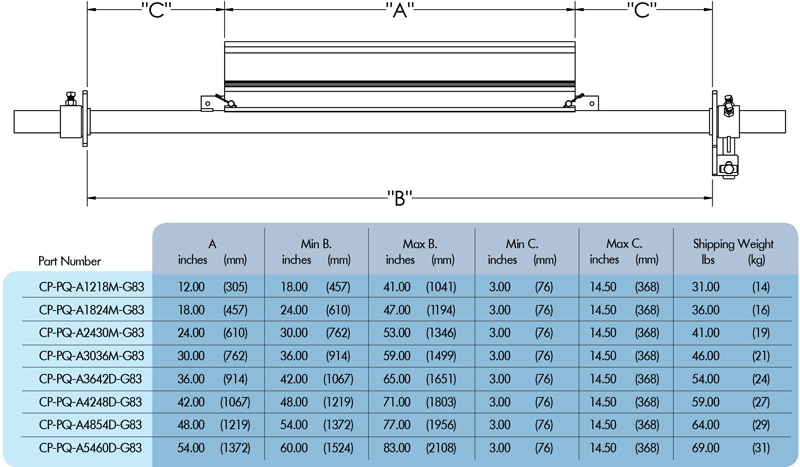

Max belt width (in.): 60

  • Ideally suited for pit and quarry applications
  • Economical yet designed for performance and reliability
  • Effective cleaning performance with a 6” (152 mm) tall polyurethane blade
  • Easy to install and tension and requires little to no maintenance.
  • Offers a simple and effective spring tensioning unit – keeping consistent pressure against the conveyor belt
  • Retrofits conveyors that use other OEM systems with slotted bolt holes on mounting brackets

Recommended Belt Speeds

  • 0 – 450 fpm (2.29 m/s)

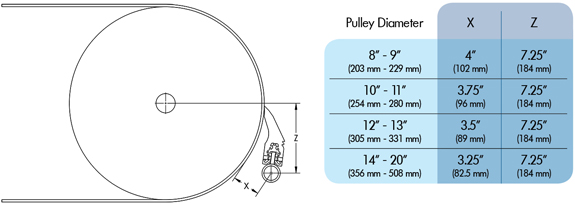

Pulley Diameter (PD)

  • Minimum: 8” (203 mm)
  • Maximum: 20” (508 mm)
