Eraser RPQ™

Related products

Product description

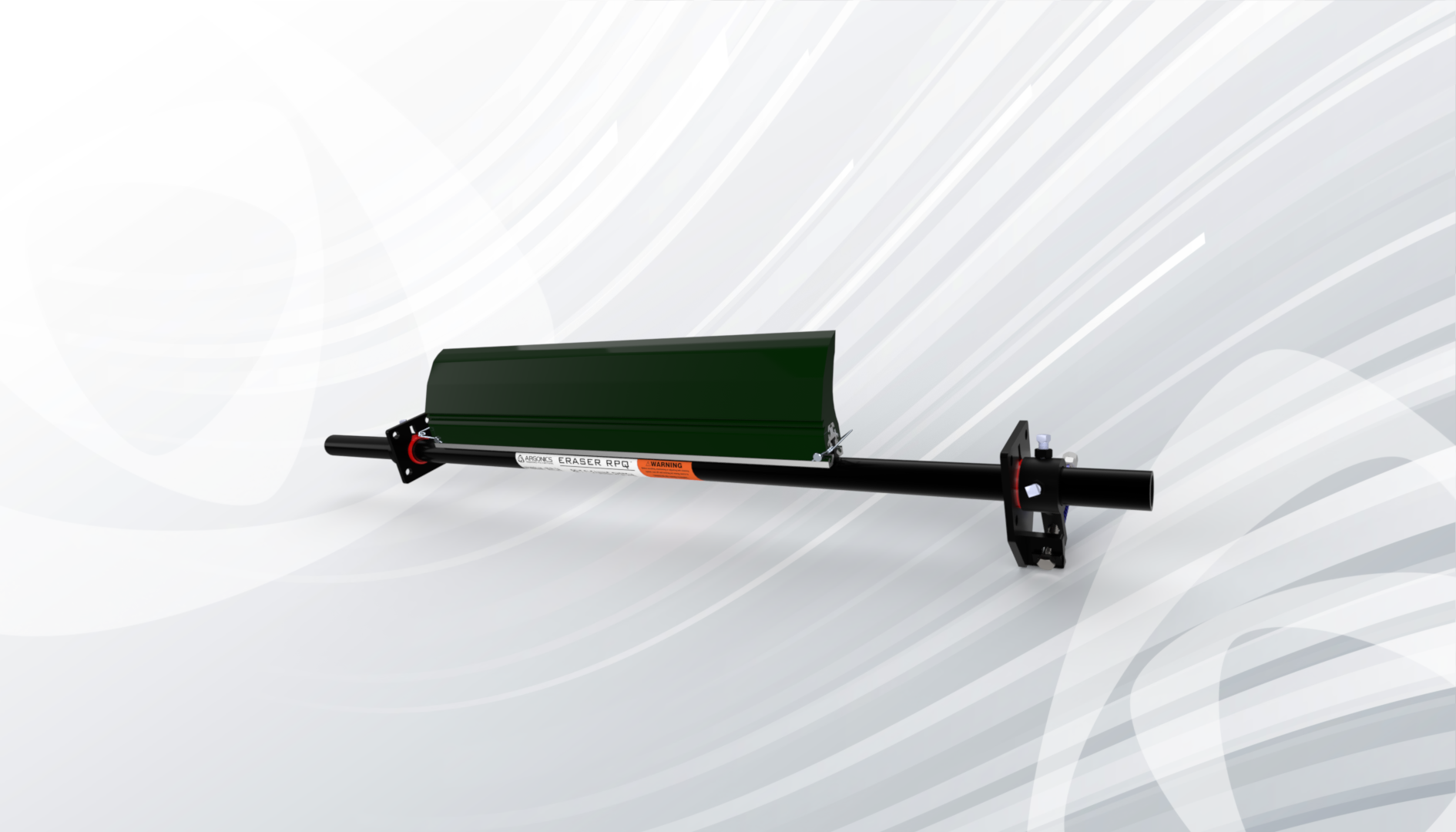

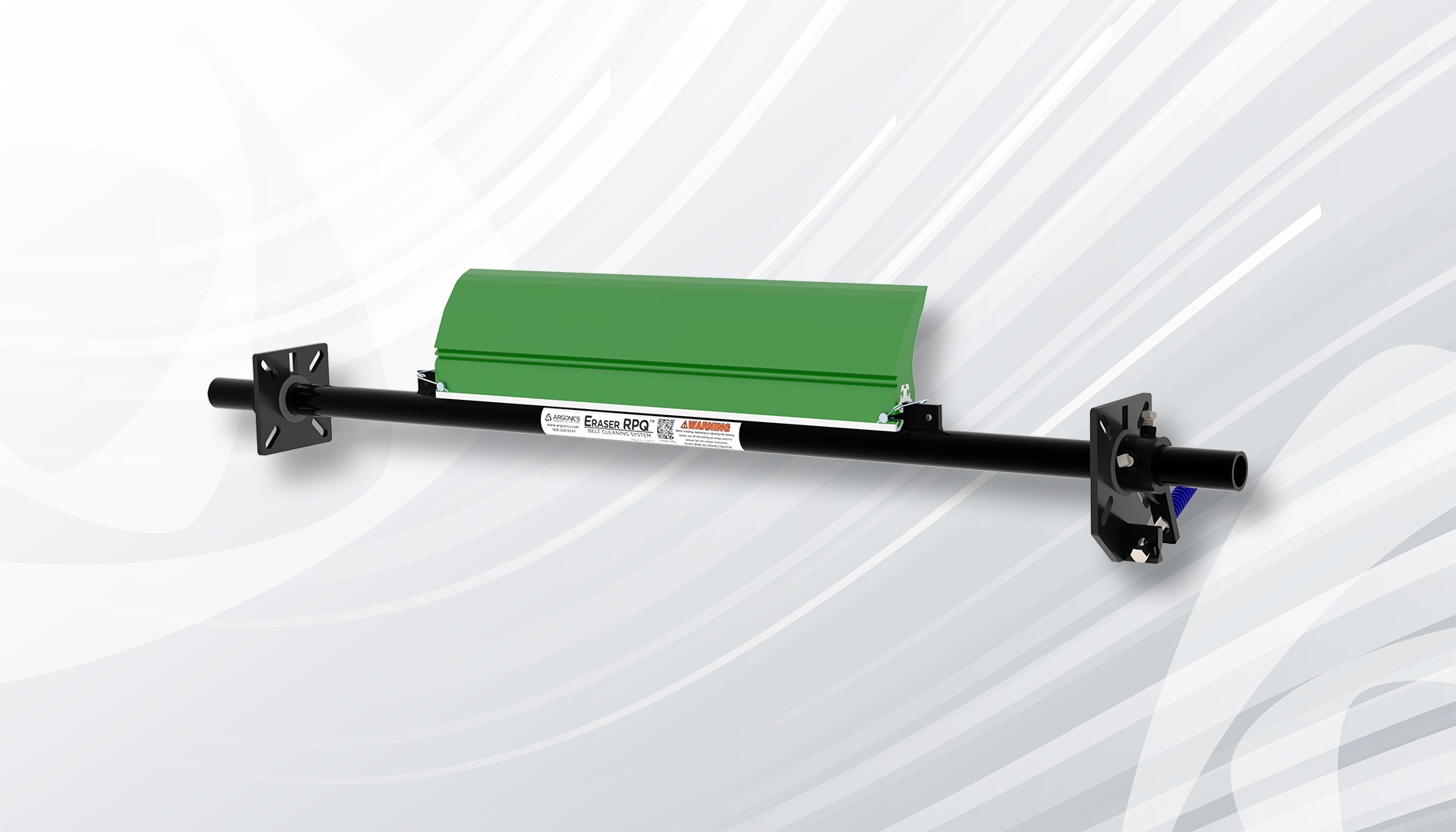

The Eraser RPQ (Pit and Quarry) system is an economical cleaner designed for performance and reliability. With a simple and effective spring tensioning unit, it uses our 7” (178 mm) tall Raptor blade and requires little to no maintenance.

Additional information

Max belt speed (FPM): 450

Min pulley diameter (in.): 8

Max pulley diameter (in.): 24

Max belt width (in.): 60

  • Ideally suited for pit and quarry applications
  • Economical yet designed for performance and reliability
  • Effective cleaning performance with a 7” (178 mm) tall polyurethane blade
  • Easy to install and tension and requires little to no maintenance.
  • Offers a simple and effective spring tensioning unit – keeping consistent pressure against the conveyor belt
  • Single pin blade attachment means quick and simple blade change out with less downtime

Recommended Belt Speeds

  • 0 – 450 fpm (2.3 m/s)

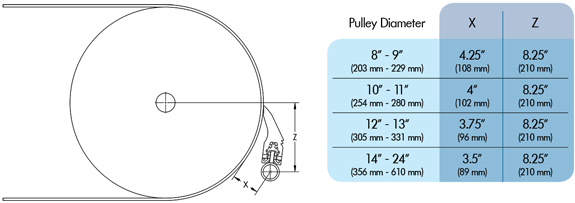

Pulley Diameter (PD)

  • Minimum: 8” (203 mm)
  • Maximum: 24” (610 mm)
