Micro Eraser™

Related products

Product description

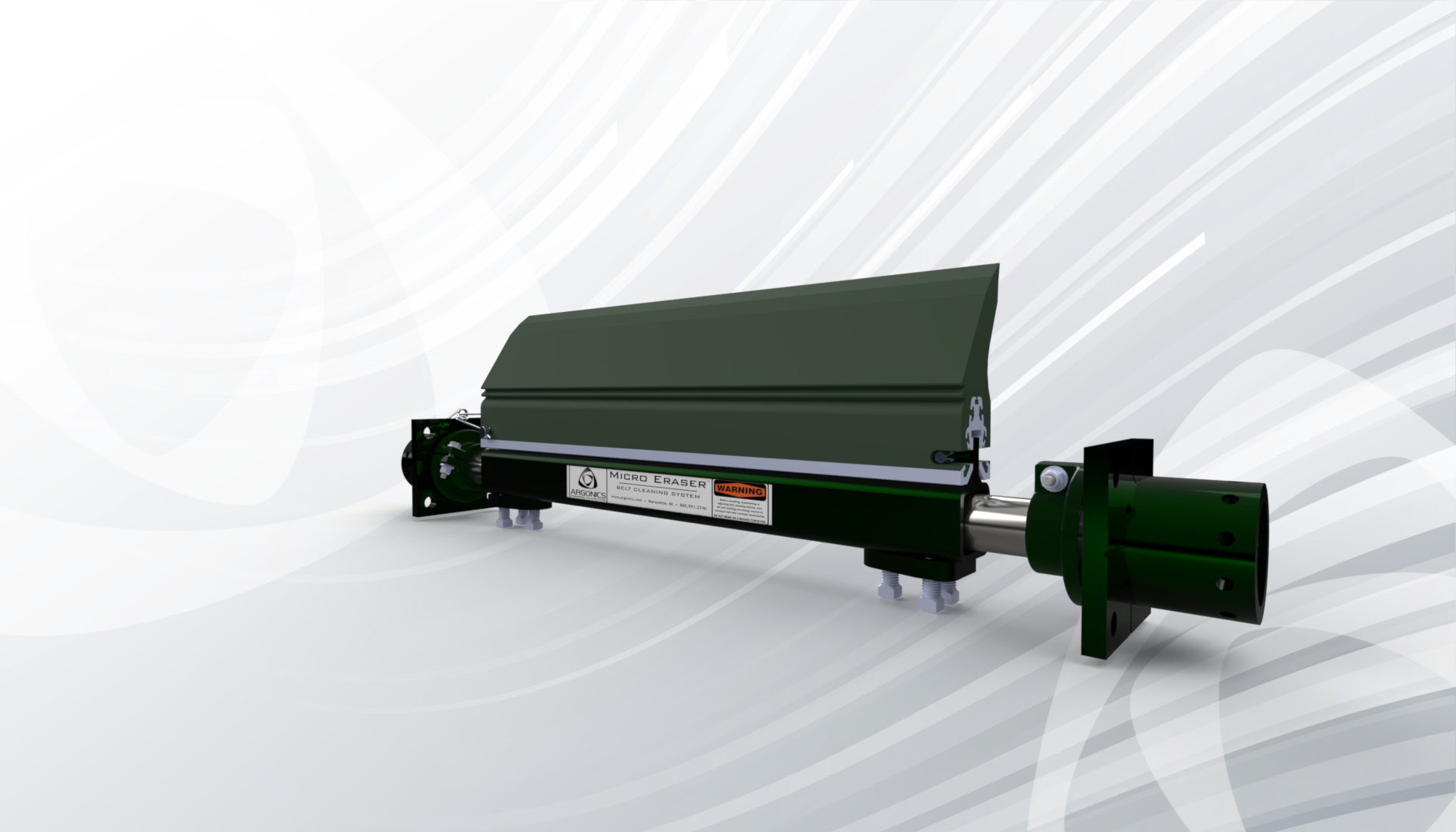

The Micro Eraser is your answer for portable equipment with tight clearance issues. Designed to be lightweight yet provide strength, the Micro Eraser features a 3/16″ (5 mm) thick wall, 2″ x 2″ (51 mm x 51 mm) tube stock steel mainframe and corrosion-resistant, powder-coated stub ends.

Additional information

Max belt speed (FPM): 500

Min pulley diameter (in.): 8

Max pulley diameter (in.): 20

Max belt width (in.): 72

  • Proven effective cleaning performance with a 6” (152 mm) tall polyurethane blade
  • Very compact mounting footprint only protrudes 4.5” (114 mm) from mounting structure
  • No rusted springs, hoses, cables, shocks or mud-packed components to deal with
  • The Perma-Torque™ internal central tensioner is adjustable from 5 to 20 ft-lb (7 to 27 Nm) resulting in uniform
    cleaning pressure to the conveyor belt
  • Single pin blade attachment means quick and simple blade change out, less downtime and no rusty bolts

Recommended Belt Speeds

  • 0 – 500 fpm (2.5 m/s)

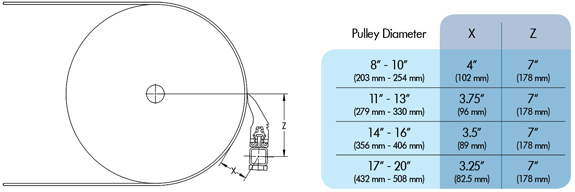

Pulley Diameter (PD)

  • Minimum: 8″ (203 mm)
  • Maximum: 20″ (508 mm)
