Eraser DS™

Related products

Product description

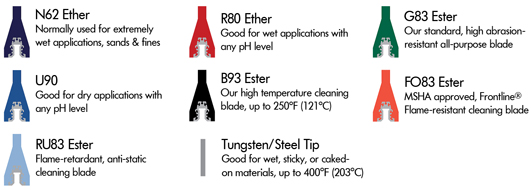

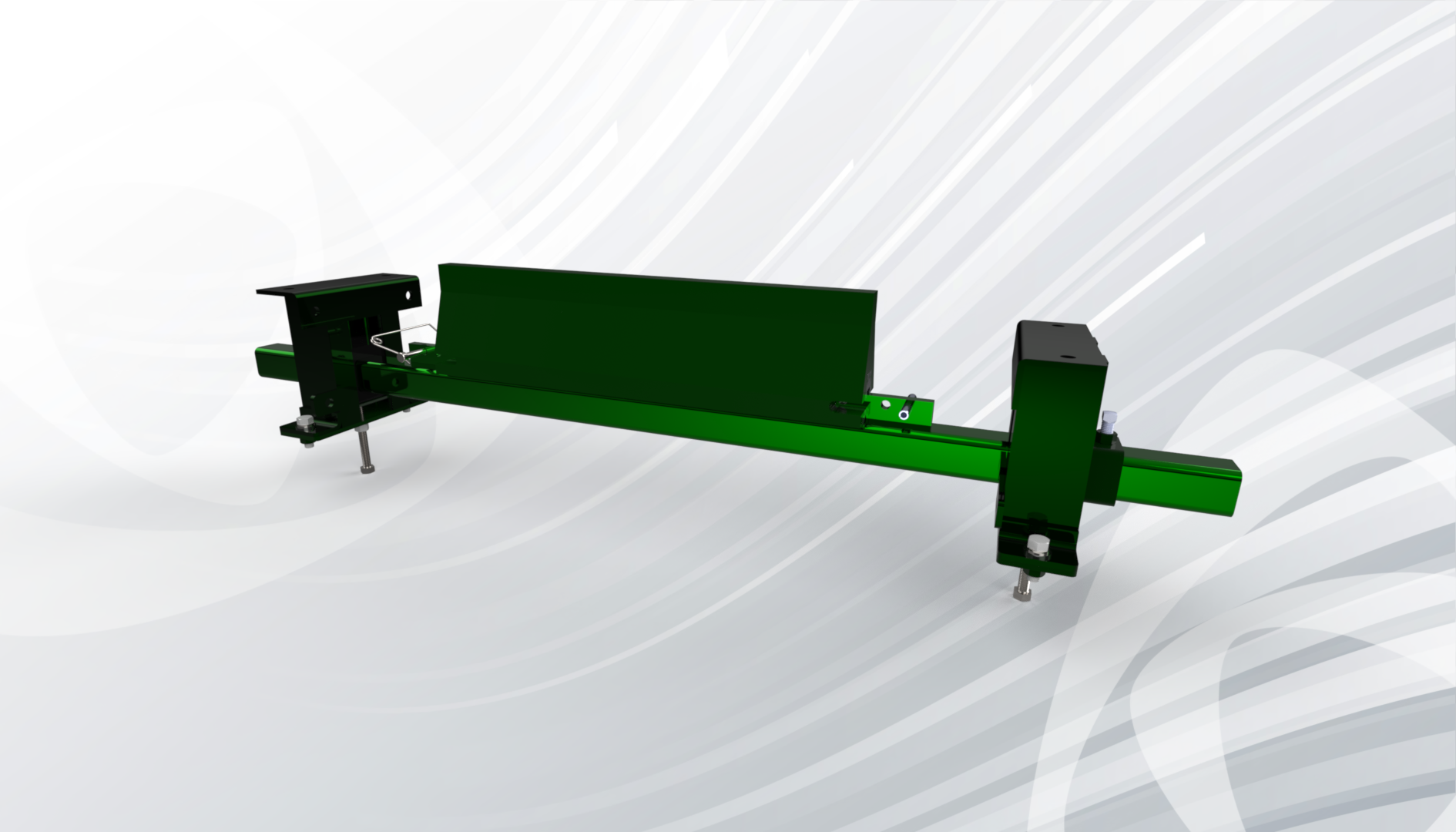

The Eraser DS is an economical version of our XTC cleaner, with a .19” thick (5 mm), 2” x 2” (51 mm x 51 mm) powder-coated tube stock steel mainframe for strength and durability. It is specifically designed for reversing conveyor belt applications. The DS uses the same polyurethane and tungsten carbide blades as the XTC.

Additional information

Max belt speed (FPM): 600

Max belt width (in.): 72

  • Specifically designed for reversing conveyor belt applications
  • No rusty springs, hoses, cables or shocks to deal with
  • Single pin blade attachment means quick blade change out, less downtime and no rusty bolts

Recommended Belt Speeds

  • Urethane blade: 0 – 600 fpm (3.0 m/s)

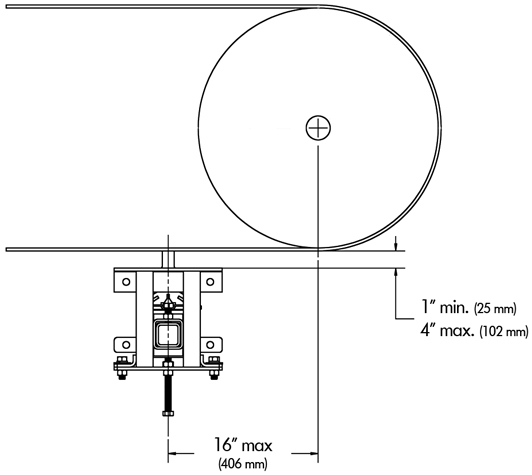

Mounting Distance

  • Vertical: 1” (25 mm) min. and 4” (102 mm) max.
  • Horizontal: up to 16” (406 mm)
