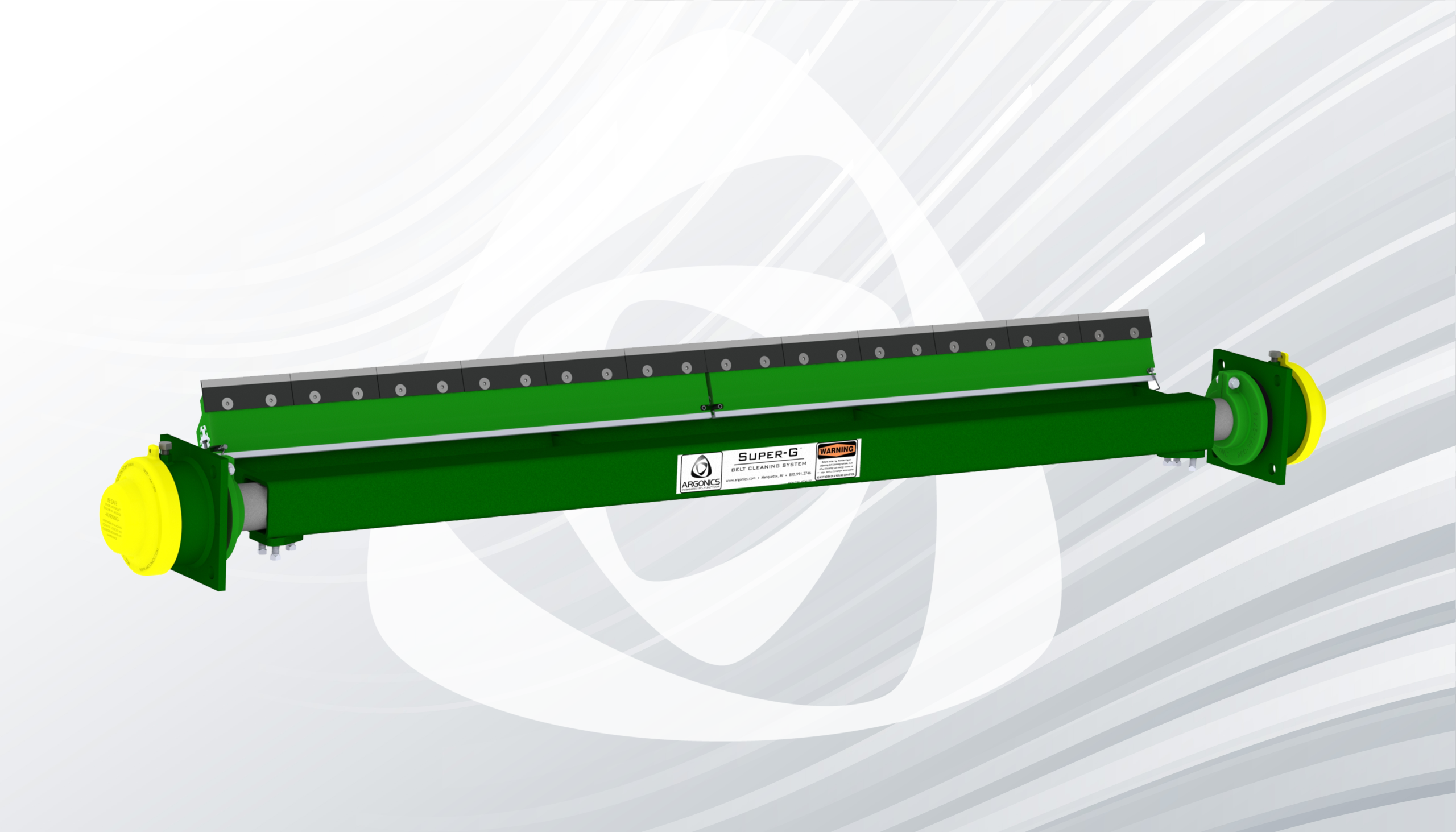

Tungsten Super-G XL™

Product description

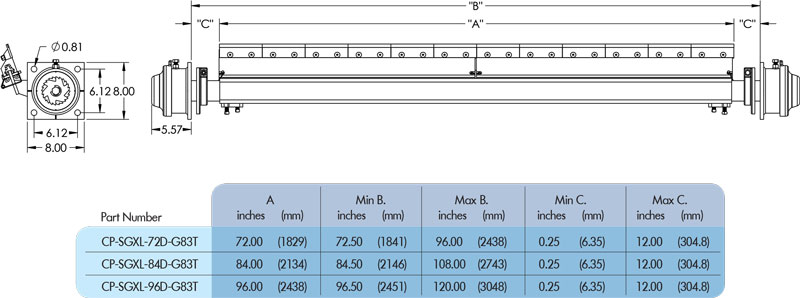

The tungsten Super-G XL is a longer version of the tungsten Super-G, available in lengths of 72″, 84″ and 96″. The Super-G XL is built on a .25″ thick, 3.5″ box steel mainframe, similar to the Super Eraser. Pins in the center allow it to hold two of our tungsten-tipped blades. The urethane cartridge holds the 6” tungsten-tipped blades, which allows the blades to flex with and maintain contact and pressure against the belt.

The Super-G’s unique “pass-through” mainframe design allows material to freely fall through it, keeping your systems online with little to no maintenance.

Additional information

Max belt speed (FPM): 900	900
Max belt width (in.): 96	96

Effective performance for wet, sticky secondary cleaning applications
Solid urethane cleaning blades also available
The Perma-Torque™ internal central tensioner is adjustable from 20 to 80 ft-lb (27 to 108 Nm) resulting in uniform cleaning pressure to the conveyor belt
Compact mounting footprint only protrudes 5” (127 mm) from mounting structure
Brightly colored safety yellow end caps seal the Safe Torque™ ratchet from dust and water contamination
Pins in center hold two of our tungsten-tipped blades and allow for quick and simple blade change out

Recommended Belt Speeds

Tungsten Blade: 0 – 900 fpm (4.5 m/s)

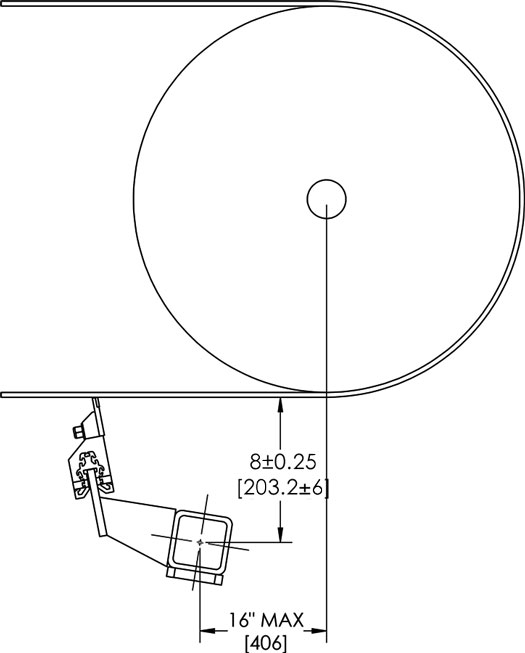

Mounting Distance

Vertical: 8” ± .25 (203.2 mm ± 6)
Horizontal: up to 16” (406 mm)

Tungsten Super-G XL™
