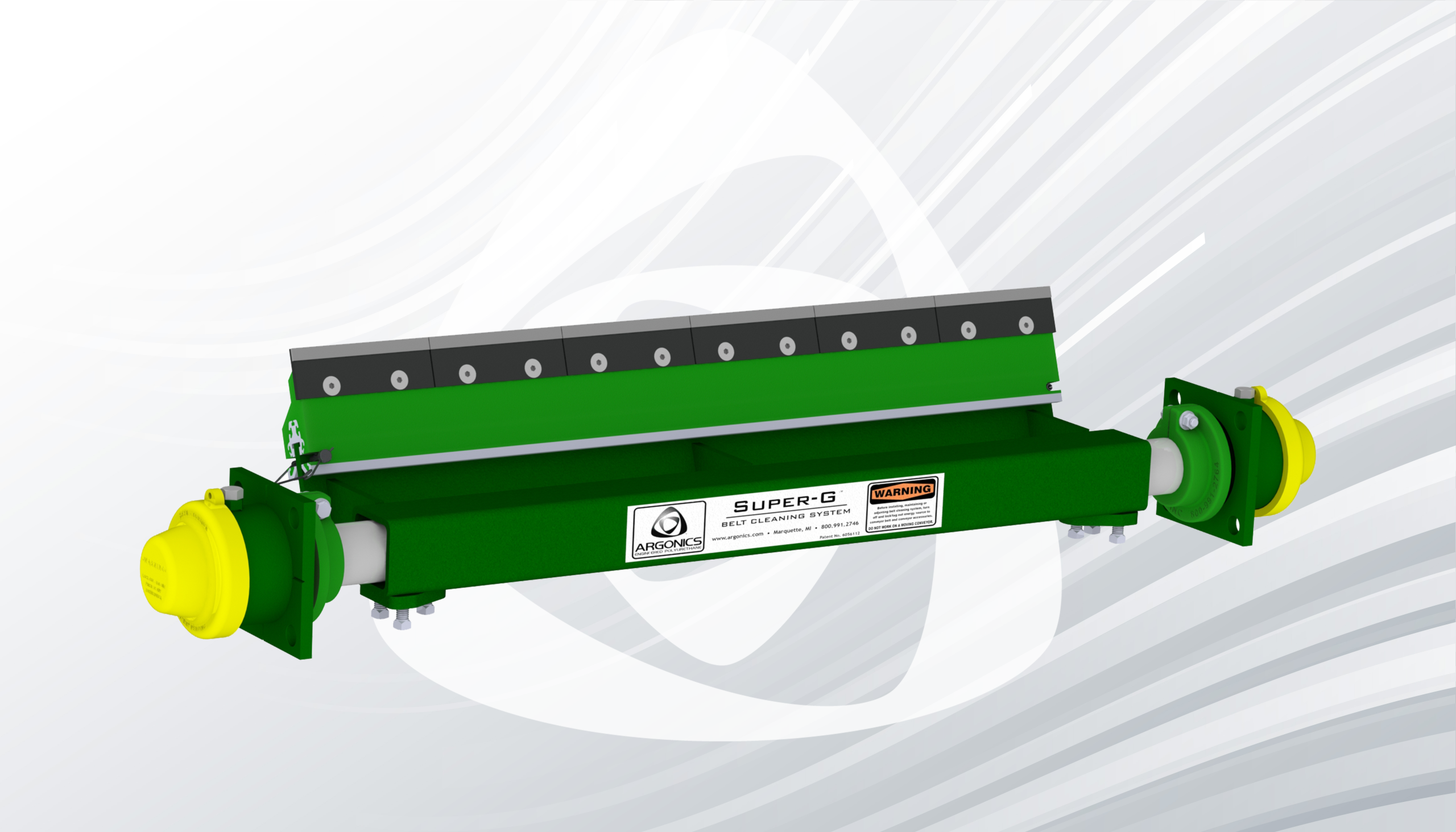

Tungsten Super-G™

Related products

Product description

The Super-G’s unique “pass-through” mainframe design allows material to freely fall through it, keeping your systems online with little to no maintenance. This system is based on the same heavy duty mainframe and Perma-Torque tensioner as our Eraser system. The urethane cartridge holds the 6” tungsten-tipped blades, which allows the blades to flex with and maintain contact and pressure against the belt.

Additional information

Max belt speed (FPM): 900

Max belt width (in.): 60

  • Effective performance for wet, sticky secondary cleaning applications
  • Solid urethane cleaning blades also available
  • The Perma-Torque™ internal central tensioner is adjustable from 20 to 80 ft-lb (27 to 108 Nm) resulting in uniform cleaning pressure to the conveyor belt
  • Compact mounting footprint only protrudes 5” (127 mm) from mounting structure
  • Brightly colored safety yellow end caps seal the Safe Torque™ ratchet from dust and water contamination
  • Single pin blade attachment means quick and simple blade change out

Recommended Belt Speeds

  • Urethane Blade: 0 – 750 fpm (3.8 m/s)
  • Tungsten Blade: 0 – 900 fpm (4.5 m/s)

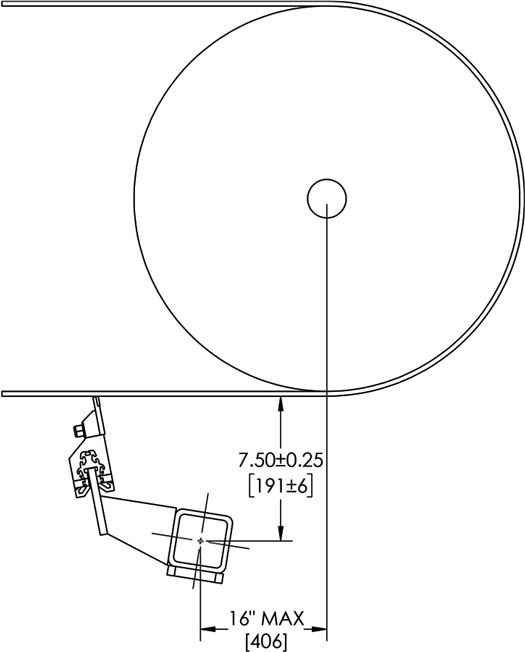

Mounting Distance

  • Vertical: 7.5” ± .25 (190 mm ± 6)
  • Horizontal: up to 16” (406 mm)
