Super Eraser™

Related products

Product description

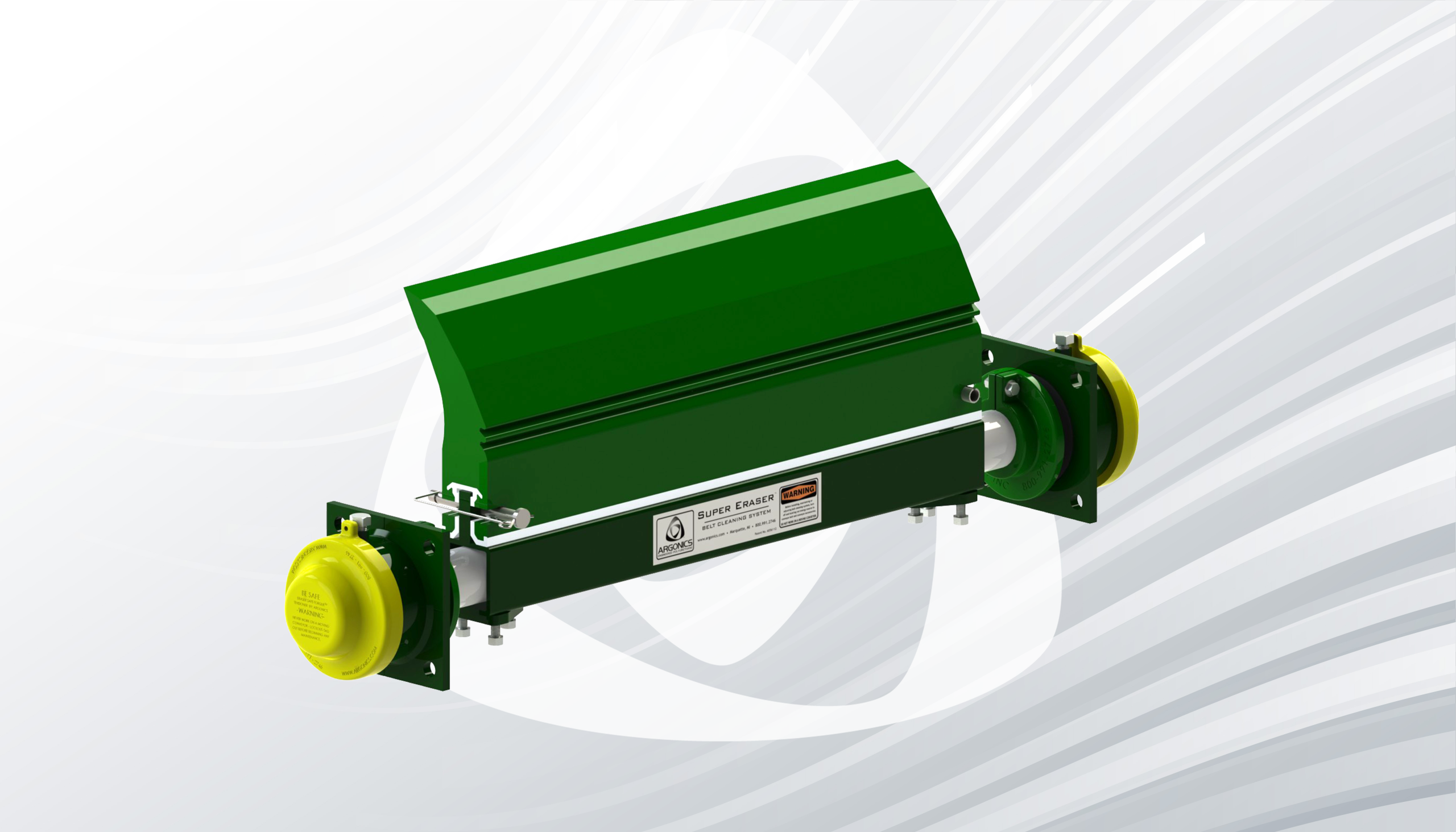

The Super Eraser is a Mine Duty cleaner. It has a .25” (6 mm) thick, 3.5” x 3.5” (89 mm x 89 mm) box steel mainframe and a massive 12” (305 mm) polyurethane blade. It will handle anything you throw at it. If you’re dealing with high speed, high tonnage belts, the Super Eraser was built specifically for you.

Additional information

Max belt speed (FPM): 1000

Min pulley diameter (in.): 24

Max pulley diameter (in.): 60

Max belt width (in.): 96

  • For use on conveyors with large head pulleys, big loads, harsh conditions and/or fast belt speeds
  • Extremely effective cleaning performance with an 12” (305 mm) Raptor blade and rugged mainframe
  • The Perma-Torque™ internal central tensioner is adjustable from 30 to 135 ft-lb (40 to 183 Nm) resulting in uniform cleaning pressure to the conveyor belt
  • Compact mounting footprint only protrudes 5.5” (140 mm) from mounting structure
  • Safety yellow colored end caps seal the Safe Torque™ ratchet from dust and water contamination
  • Single pin blade attachment means quick blade change out with less downtime

Recommended Belt Speeds

  • 0 – 1000 fpm (3.81 m/s)

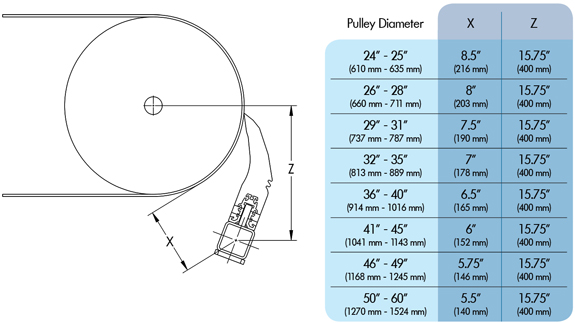

Pulley Diameter (PD)

  • Minimum: 24” (610 mm)
  • Maximum: 60” (1524 mm)
