Micro Eraser™

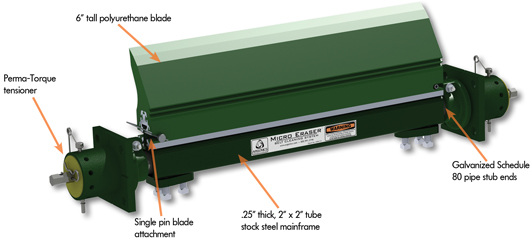

The Micro Eraser is your answer for portable equipment with tight clearance issues. Designed to be lightweight yet provide strength, the Micro Eraser features a 3/16″ (5 mm) thick wall, 2″ x 2″ (51 mm x 51 mm) tube stock steel mainframe and corrosion-resistant, powder-coated stub ends.

Benefits
  • Proven effective cleaning performance with a 6” (152 mm) tall polyurethane blade
  • Very compact mounting footprint only protrudes 4.5” (114 mm) from mounting structure
  • No rusted springs, hoses, cables, shocks or mud-packed components to deal with
  • The Perma-Torque™ internal central tensioner is adjustable from 5 to 20 ft-lb (7 to 27 Nm) resulting in uniform
    cleaning pressure to the conveyor belt
  • Single pin blade attachment means quick and simple blade change out, less downtime and no rusty bolts
Specifications

Recommended Belt Speeds

  • 0 – 500 fpm (2.5 m/s)

Pulley Diameter (PD)

  • Minimum: 8″ (203 mm)
  • Maximum: 20″ (508 mm)

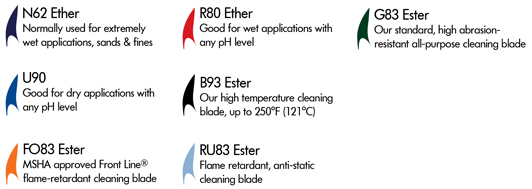

Blade Durometer Options

blade durometer

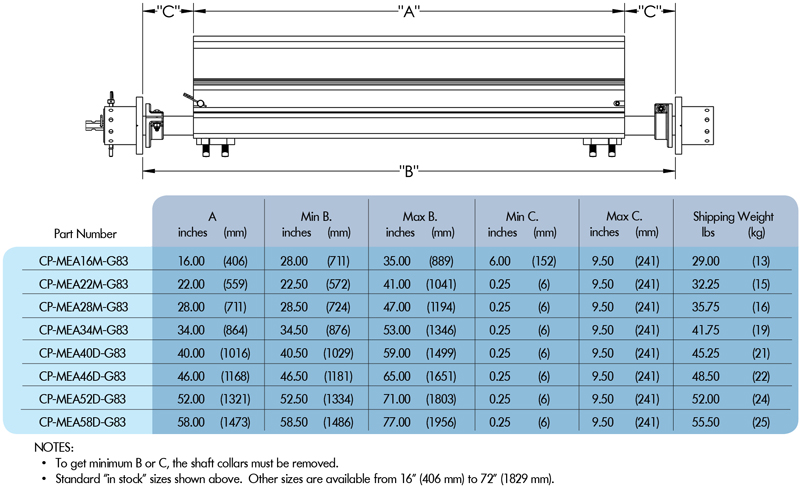

Sizing Information

sizing

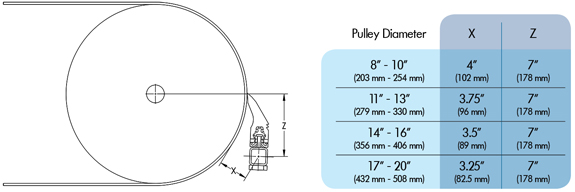

Mounting Information

Micro-Eraser-mounting-info

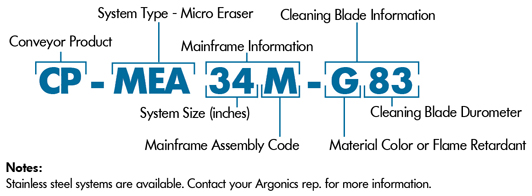

Part Numbering

Micro-Eraser-nomenclature
