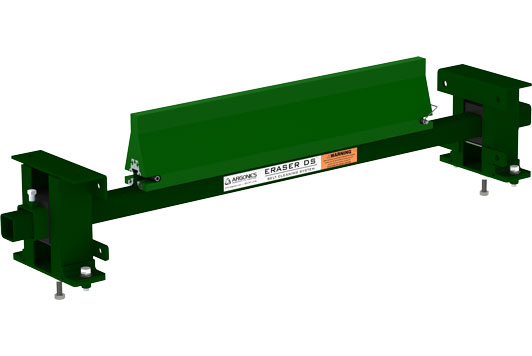

Eraser DS™

The Eraser DS is an economical version of our XTC cleaner, with a .19” thick (5 mm), 2” x 2” (51 mm x 51 mm) powder-coated tube stock steel mainframe for strength and durability. It is specifically designed for reversing conveyor belt applications. The DS uses the same polyurethane and tungsten carbide blades as the XTC.

  • Eraser DS system
Benefits
  • Specifically designed for reversing conveyor belt applications
  • No rusty springs, hoses, cables or shocks to deal with
  • Single pin blade attachment means quick blade change out, less downtime and no rusty bolts
Specifications

Recommended Belt Speeds

  • Urethane blade: 0 – 500 fpm (2.54 m/s)

Mounting Distance

  • Vertical: 1” (25 mm) min. and 4” (102 mm) max.
  • Horizontal: up to 16” (406 mm)

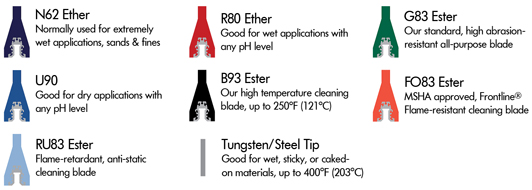

Blade Durometer Options

Eraser DS blade durometer options

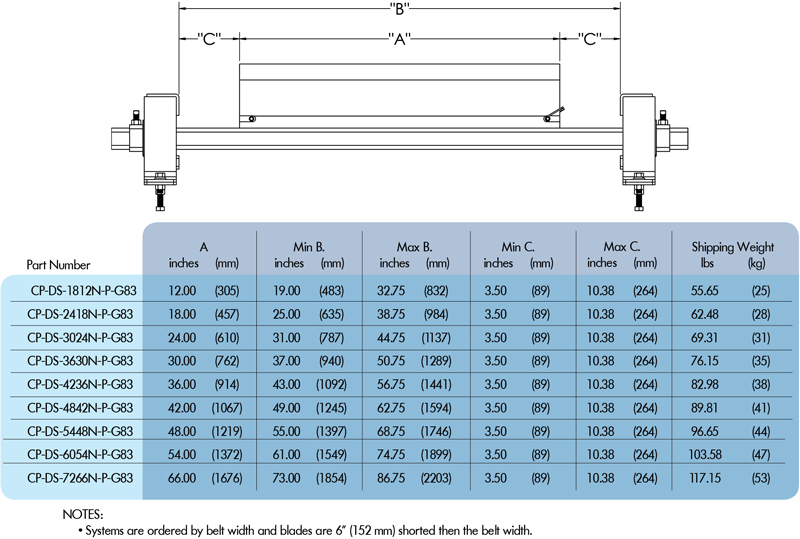

Sizing Information

Eraser DS sizing chart

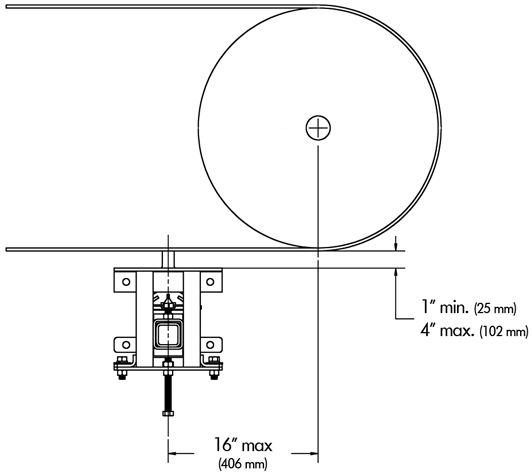

Mounting Information

Eraser DS mounting info

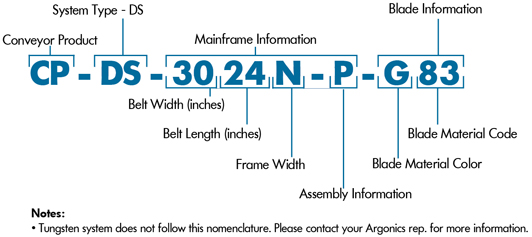

Part Numbering

Eraser DS nomenclature
