Tungsten Eraser DS™

The Eraser DS with tungsten carbide blade is an economical version of our XTC cleaner, with a .19” thick (5 mm), 2” x 2” (51 mm x 51 mm) powder-coated tube stock steel mainframe for strength and durability. It is specifically designed for reversing conveyor belt applications. The DS uses the same tungsten carbide blade as the XTC.

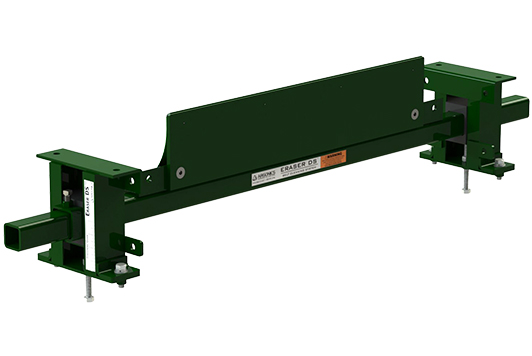

  • Eraser DS tungsten system
Benefits
  • Specifically designed for reversing conveyor belt applications
  • Comes with tungsten carbide cleaning edge, polyurethane also available
  • No rusty springs, hoses, cables or shocks to deal with
Specifications

Recommended Belt Speeds

  • Tungsten blade: 0 – 900 fpm (4.5 m/s)

Mounting Distance

  • Vertical: 1” (25 mm) min. and 4” (102 mm) max.
  • Horizontal: up to 16” (406 mm)
Blade Durometer Options

XTC tungsten blade durometer

Sizing Information

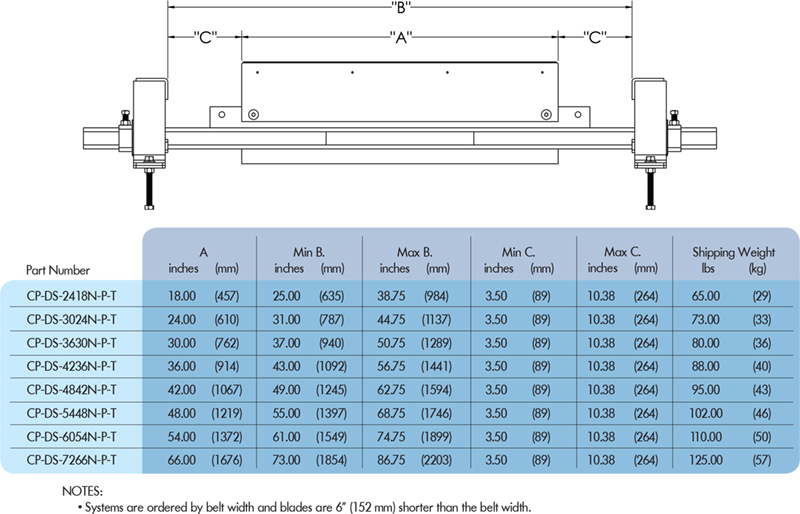

Eraser DS tungsten sizing chart

Mounting Information

Eraser DS mounting info

Part Numbering

Contact Argonics for part numbering information.
