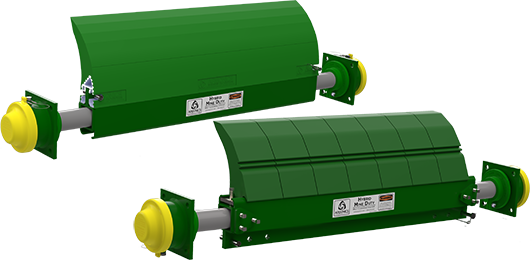

Hybrid Mine Duty
The Hybrid Mine Duty belt cleaner is a dual-sided cleaner that accepts both our full-length MDP and 6″ segmented blades.
The patent-pending MDP blade insert is engineered for strength and toughness. This system uses our Super Eraser’s .25″ (6 mm) thick, 3.5″ x 3.5″ (89 mm x 89 mm) tube stock steel mainframe and corrosion-resistant, galvanized Schedule 160 pipe stub ends for long lasting durability.
Benefits
- Dual-sided mainframe accepts both full-length MDP and segmented DXT blades
- Switch from one blade style to the other if needs or applications change
- For use on conveyors with large head pulleys, big loads, harsh conditions and/or fast belt speeds
- The Perma-Torque™ internal central tensioner is adjustable from 30 to 100 ft-lb (40 to 136 Nm) resulting in uniform cleaning pressure to the conveyor belt
- Compact mounting footprint only protrudes 5.5″ (140 mm) from mounting structure
- Safety yellow colored end caps seal the Safe Torque™ ratchet from dust and water contamination

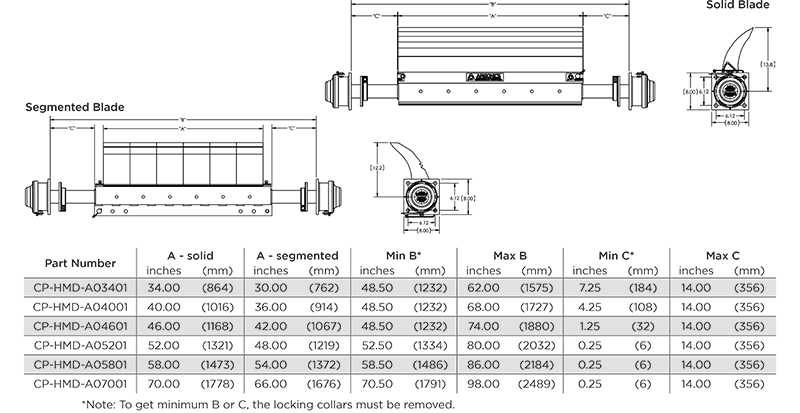

Specifications
Recommended Belt Speeds

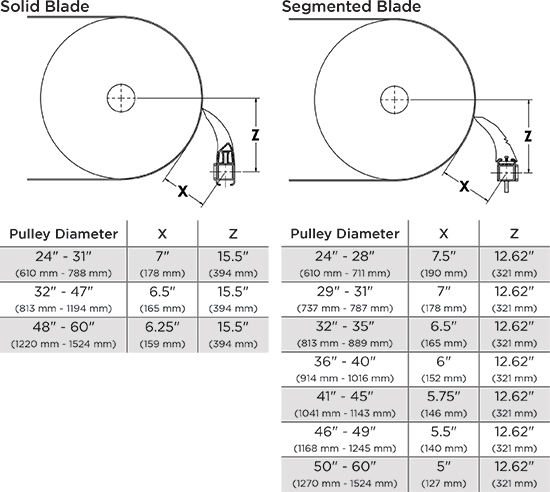

Pulley Diameter (PD)
- Minimum: 24″ (610 mm)
- Maximum: 60″ (1524 mm)
