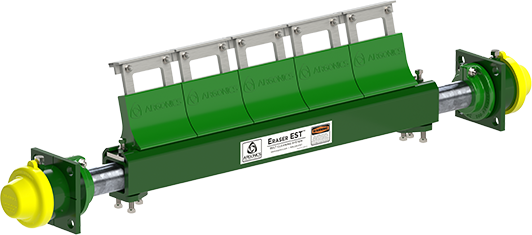

Eraser EST™
The Eraser EST is designed to withstand heavy vibration. This system has a reinforced mainframe and a heavy duty channel attachment design. It utilizes a series of 6″ wide x 7.75″ tall (152mm x 178 mm) tungsten-tipped blade segments that are ideal for wet, sticky material. Designed for superior strength and durability with a .25″ (6 mm) thick, 3″ x 3″ (76 mm x 76 mm) tube stock steel mainframe and corrosion-resistant, galvanized Schedule 80 pipe stub ends.
Benefits
- Designed for use on conveyors with crowned head pulleys or heavy vibration
- Heavy duty 7.75″ (178 mm) tall tungsten/polyurethane blades provide effective cleaning performance
- Intended for use only on vulcanized belts
- The Perma-Torque™ internal central tensioner is adjustable from 20 to 80 ft-lb (27 to 108 Nm) resulting in uniform cleaning pressure to the conveyor belt
- Compact mounting footprint only protrudes 5″ (127 mm) from mounting structure
- No rusted springs, hoses, cables, shocks or mud-packed components to deal with
- Brightly colored safety yellow end caps seal the Safe Torque™ ratchet from dust and water contamination

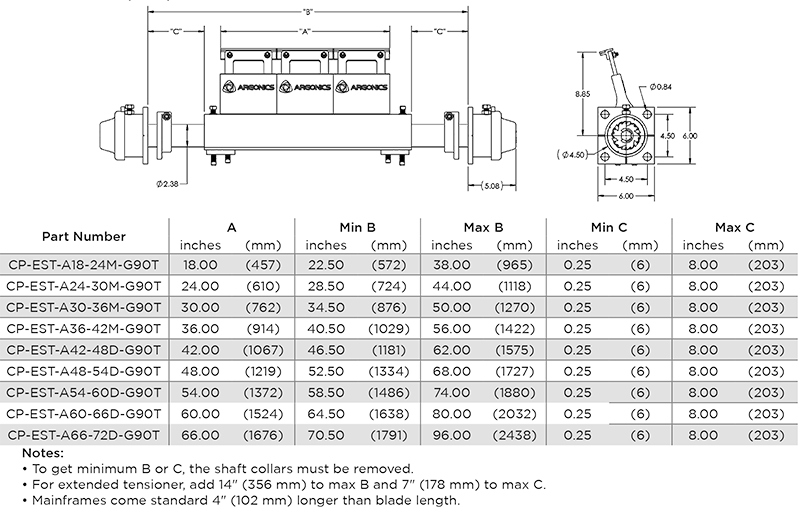

Specifications
Recommended Belt Speeds
Pulley Diameter (PD)
- Minimum: 16” (406 mm)
- Maximum: 48” (1219 mm)
