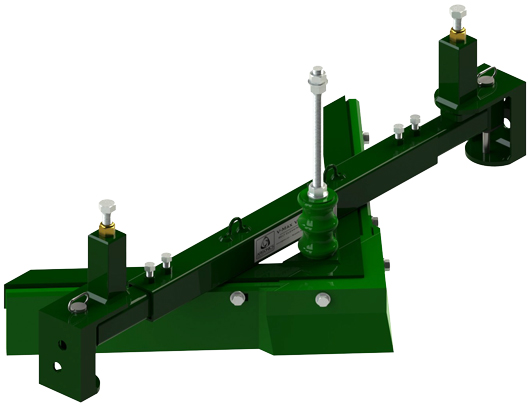

V-Max™ V-Plow

Keep rocks, fines, clumps and other debris off your belt and away from your tail pulley with the Argonics V-Max™ V-Plow. The plow is equipped with our best Kryptane® urethane side blades and an angled front nose plow.

The V-Max has a chrome-silicon spring tensioning system for extremely dirty environments with heavy vibration. It clears debris while floating on the belt and will self-adjust as it wear.

The V-Max is designed with a .25” (6 mm) thick, 2.5” x 2.5” (63.5 mm x 63.5 mm) tube stock steel mainframe.

  • V-Max V-Plow system
Benefits
  • Equipped with Kryptane® G83 polyurethane blades that are easily replaceable and provide 3” (76 mm) of wear before needing service
  • Rugged mainframe and heavy duty front nose plow blade
  • No hoses, cables, shocks or mud-packed components to deal with
  • Adjustable chrome-silicon spring tensioners keep the plow on the your belt during heavy vibration
  • V-Max systems 32” and larger come standard with nose tensioner
  • All V-plows come standard with safety chains
  • V-Max comes fully assembled, ready to install with easy, step-by-step instructions
  • Wear travel limit mounting brackets
  • Weld- or bolt-in installation
Specifications

N/A

Blade Durometer Options
  • V-Max V-Plow is only available in G83
Sizing Information

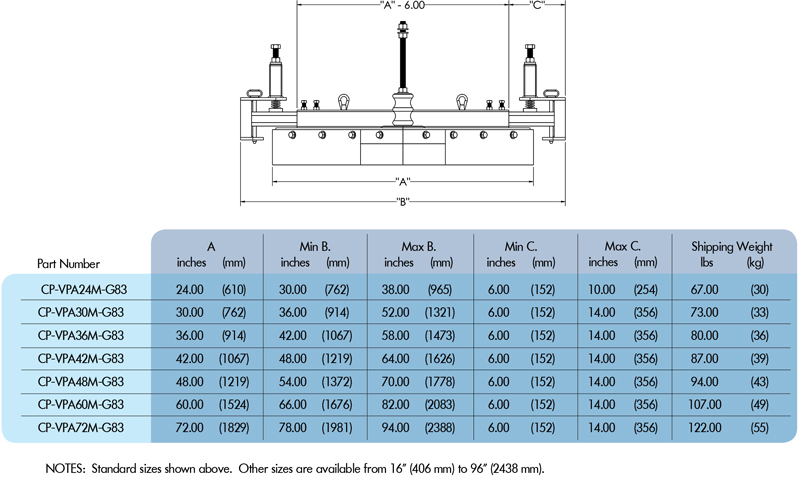

V-Max V-Plow sizing chart

Mounting Information

N/A

Part Numbering

N/A
