Bulk Material Handling | Mining | Construction

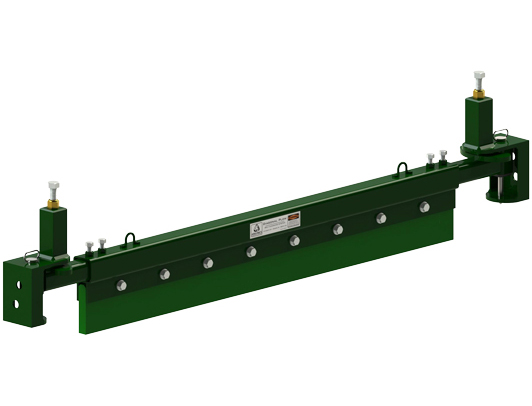

Mine Duty Diagonal Plow

The Mine Duty diagonal plow may seem simple, but don’t be fooled, it works! Thanks to the adjustable down pressure system, this single-minded plow will reduce your down time and increase your bottom line. The V-Max is a mine duty plow, designed to do its job and do it well in the harshest of environments. The plow is designed with a .25” (6 mm) thick, 2.5” x 2.5” (63.5 mm x 63.5 mm) tube stock steel mainframe for rugged performance and durability.

  • V-Max X-Plow system
  • Equipped with Kryptane® G83 polyurethane blade
  • Rugged mainframe and blade design
  • No hoses, cables, shocks or mud-packed components to deal with
  • Adjustable chrome-silicon spring tensioners
  • Comes standard with safety chains
  • Wear travel limit mounting brackets with guide pins
  • Weld- or bolt-in installation
  • V-Max comes full assembled, ready to install with easy, step-by-step instructions


Blade Durometer Options
  • The Mine Duty Diagonal Plow comes with G83 blades
Sizing Information

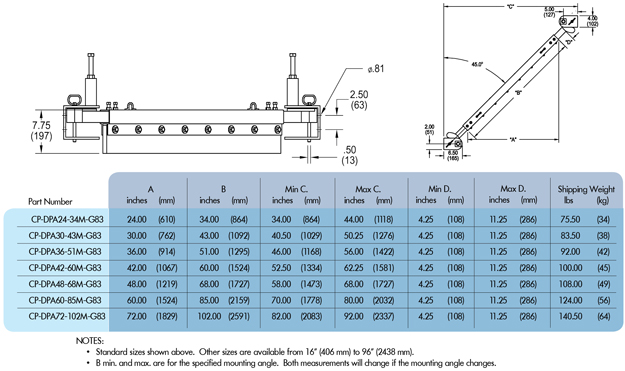

V-Max X-Plow sizing chart

Mounting Information


Part Numbering
